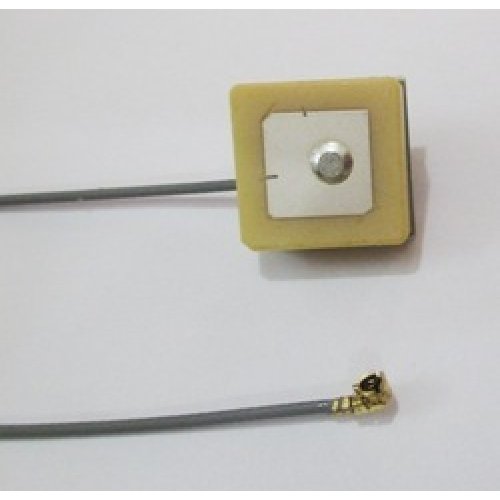

• Internal GPS Active Patch Antenna
These are the antennas of choice for smartphones, navigation devices, tracking devices, consumer GPS devices and many handheld devices incorporating GPS for location based services.
The antennas are available with a variety of connectors to suit your module or we recommend U.FL compatible connectors as a standard.

Electrical Specification:
  • Centre Frequency: 1575.42MHz ± 3MHz
  • VSWR: ≤1.5
  • Impedance: 50 ohm
  • Polarization: RHCP
  • LNA Gain: 10~25 dB
  • Noise Figure: 1.5 dB
  • DC Voltage: 2.7~3.3V
  • DC Current:10mA
Mechanical Specification:
  • Dimension: 15mm x 15mm x 5 mm
  • Cable: 1.13 or others
  • Connector: IPEX(UFL) or others
  • Working Temperature: -40°C to +85°C
  • Humidity: 95% to 100% RH
  • Waterproof: IP67

Write a review

Please login or register to review

Internal GPS Active Patch Antenna

  • Product Code:PRC-GPS-Active-Patch-Antenna
  • Reward Points:6
  • Availability:Out Of Stock
  • रo 460.00
  • रo 380.00

  • Ex Tax:रo 380.00
  • Price in reward points:560
