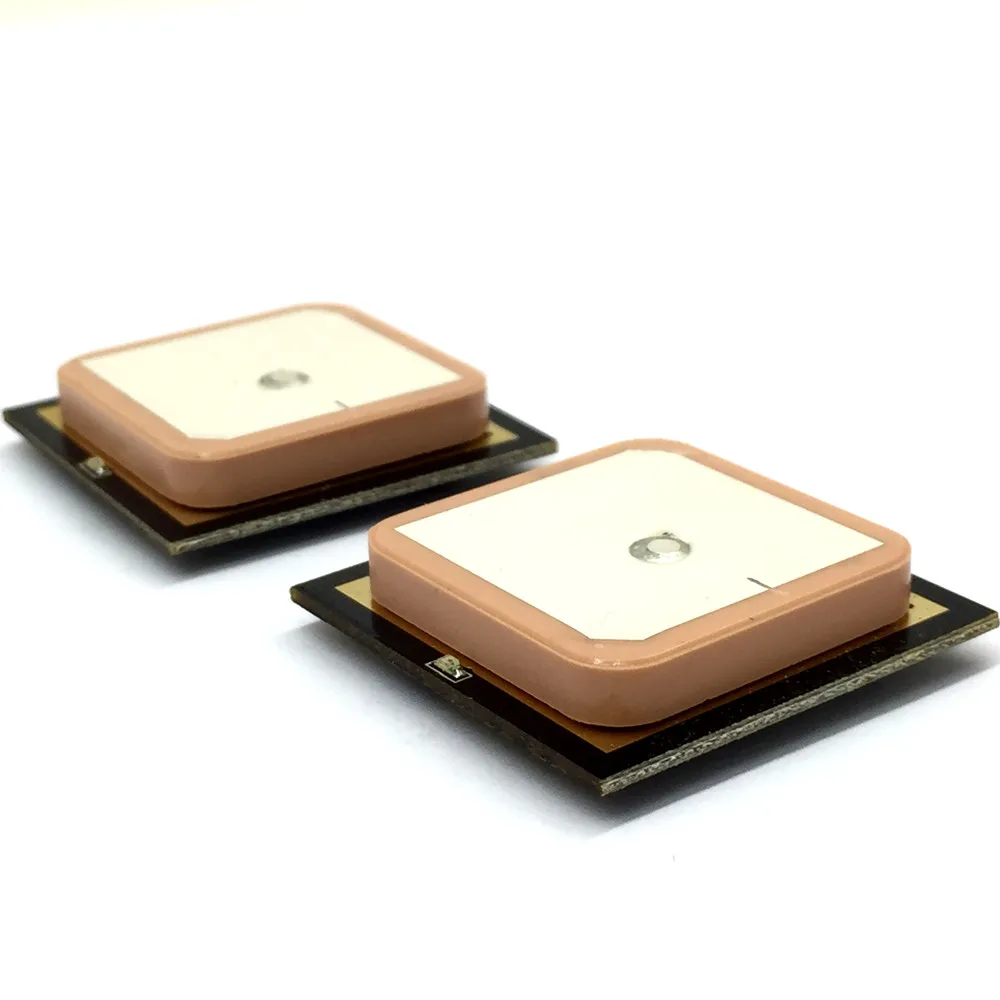

Ublox M8N GPS Chip Module
Specifications:
-
UART (TTL)output protocol
-
GNSS multi-mode design, support GPS+GLONASS+GALILEO and GPS+ Beidou+GALILEO Positioning mode switching
-
Built in FLASH can be configured to save output parameters
-
Using UBLOX8030 chip design
-
6PIN pin pad
-
Baud rate: 9600 (default)
-
Location mode: GPS+GLONASS (default)
-
GPS+BEI DOU mode can be set
-
u-blox 8 UBX-M8030-KT chipset
-
Frequency:
-
GPS: L1, 1575.4200 MHz
-
GLONASS: L1, 1602 (k x 0,5625) MHz
-
BEIDOU COMPASS: B1, 1561.0980 MHz
-
GALILEO E1, 1575.4200 MHz
-
QZSS L1, 1575.4200 MHz
-
Accepts the signals of up to 72 satellites at the same time
-
Supports AssistNow online / offline,
-
SBAS (WAAS, EGNOS, QZSS and MSAS)
-
Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
-
USB specification 2.0
-
Auto Baud Rate up to 115200 bps
-
Update rate:
-
Single GNSS: 18 Hz (e.g. GPS solo)
-
Multi GNSS: 10 Hz (e.g. GPS + GLONASS)
-
Sensibility max. -167 dBm
-
IPX6 protection class
-
Magnetic, non-slip on the bottom
-
LED-indicator for GPS-status
-
Operating temperature: -40 ° C to 80 ° C
-
Power supply: 5 Volt
-
Current consumption: max. 45 mA
-
Cold start in ca. 26 seconds
-
Hot start in ca. 1 second
-
Positioning accuracy: 2.5 m CEP (Circular Error Probable) and
-
2 m CEP with SBAS
-
Dimensions (LxWxH): ca. 30 x 30 x 8.2mm
GPS+BEI DOU+GALILEO
Ublox M8N GPS Chip Module
- Product Code:PRC-Ublox-M8N-GPS-chip-module
- Reward Points:13
- Availability:Out Of Stock
-
रo 1,298.00
- Ex Tax:रo 1,100.00
- Price in reward points:1285
