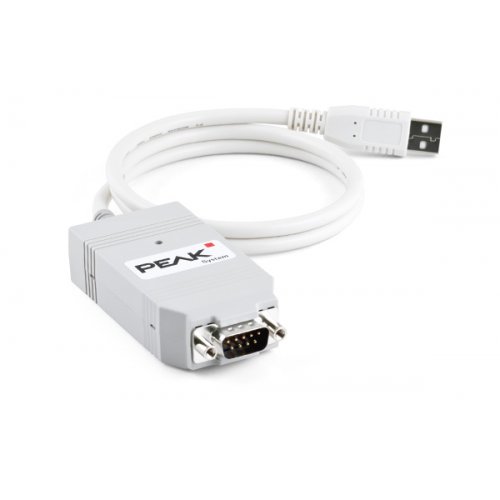

The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.
The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows and the programming interface PCAN-Basic.
Available Options:
- PCAN-USB
- PCAN-USB opto-decoupled
Specifications:
- Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
- High-speed CAN connection (ISO 11898-2)
- Bit rates from 5 kbit/s up to 1 Mbit/s
- Time stamp resolution approx. 42 µs
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- CAN bus connection via D-Sub, 9-pin (in accordance with CiA 303-1)
- NXP SJA1000 CAN controller, 16 MHz clock frequency
- NXP PCA82C251 CAN transceiver
- Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
- CAN termination can be activated through a solder jumper
- 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
- Voltage supply via USB
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
Documents:
Package Includes:
- 1 x PCAN-USB CAN Interface for USB
PCAN-USB CAN Interface for USB
- Brand: PeakSystem
- Product Code:PEAK-USB-CAN-Interface
- Reward Points:236
- Availability:In Stock
-
रo 27,954.20
- Ex Tax:रo 23,690.00
- Price in reward points:23690
