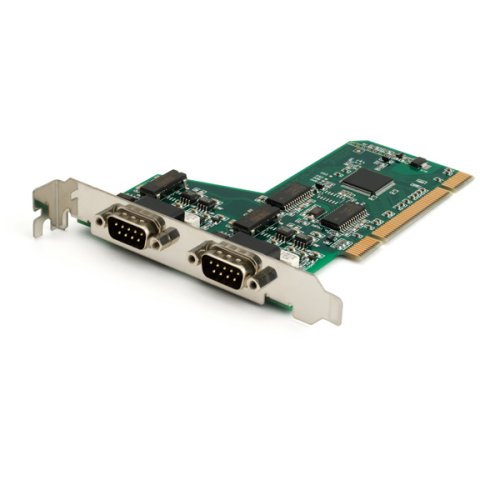

The PCAN-PCI card enables the connection of a PC with PCI slots to CAN networks.

The card is available as a single or dual-channel version. The opto-decoupled versions also guarantee galvanic isolation of up to 500 Volts between the PC and the CAN sides.

The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.

Specifications:

• PC plug-in card for PCI slots
• 1 or 2 High-speed CAN channels (ISO 11898-2)
• Bit rates from 5 kbit/s up to 1 Mbit/s
• Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
• CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 106)
• NXP SJA1000 CAN controller, 16 MHz clock frequency
• NXP PCA82C251 CAN transceiver
• 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
• Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel (only for IPEH-002066 and IPEH-002067)
• Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)

Scope of Supply:

• Plug-in card PCAN-PCI
• Device drivers for Windows® 11 (x64), 10 (x64), and Linux
• CAN monitor PCAN-View for Windows®
• Programming interface PCAN-Basic for developing applications with CAN connection
• Programming interfaces for standardized protocols from the automotive sector
• Manual in PDF format

Package Includes:

• 1 x PCAN-PCI Dual Channel
