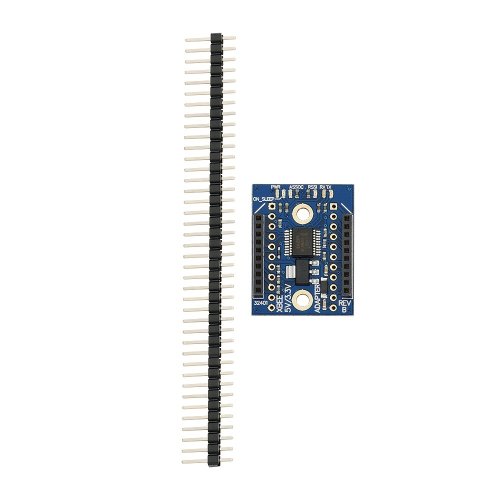

This low cost XBee 3.3-5V Adapter Board comes in partially assembled kit form and provides a cost-effective solution for interfacing your microcontroller to any XBee or XBee Pro module. A voltage regulator and 74LVC244A buffer is included onboard for safe interfacing to a 5 V supply, allowing for easy compatibility with any Parallax microcontroller.

Key Features:

Onboard 3.3 V regulator and 5 V to 3.3 V logic converters
Four status indicator LEDs for Power, RSSI, Associate, and mode (sleep/ON)
Converts XBee 2mm pin spacing to breadboard friendly 0.1" spacing
Provides easy pluggable wire or solder connections
Pin out compatible with other XBee USB Adapter Board
Compatible with all Parallax 3.3 V and 5 V microcontrollers

Specifications:

Voltage requirements: 3.3-5VDC
Current requirements: Varies with XBee Model
Communication: Serial pass-through to XBee module
Dimensions: 1.51 x 1.00 x 0.58* in (38.3 x 25.6 x 14.8*mm) * when headers are attached
Operating temp range: -40 to +158 °F (-40 to +70 °C)

Documents:

Package Includes:
