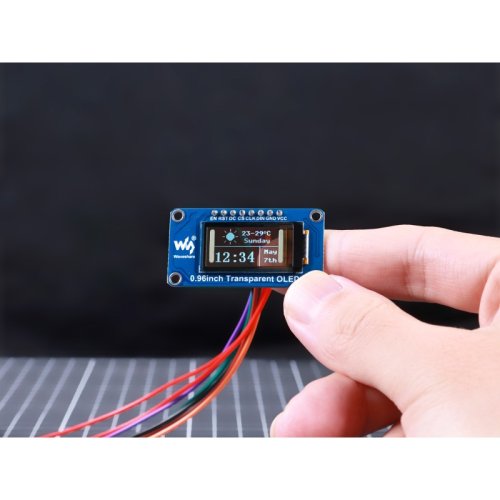

0.96inch Transparent OLED Display Module

Built-in SSD1312 Driver IC, with SPI / I2C communication Interface

Comes with examples for Raspberry Pi, ESP32, STM32, etc.

• Size: 0.96 inch
• Resolution: 128 × 64 pixels
• Display Color: White on Black
• Display Type: OLED
• Interface: SPI / I²C
• OLED Driver: SSD1312

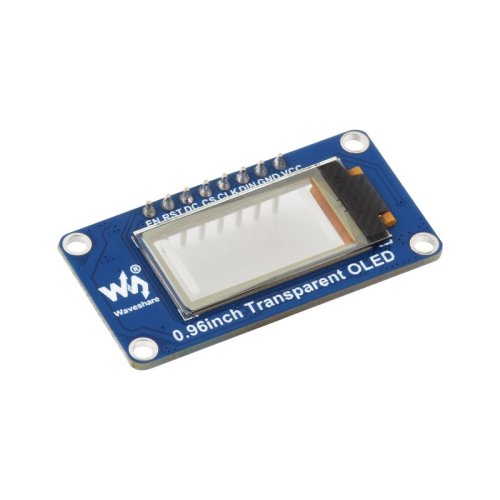

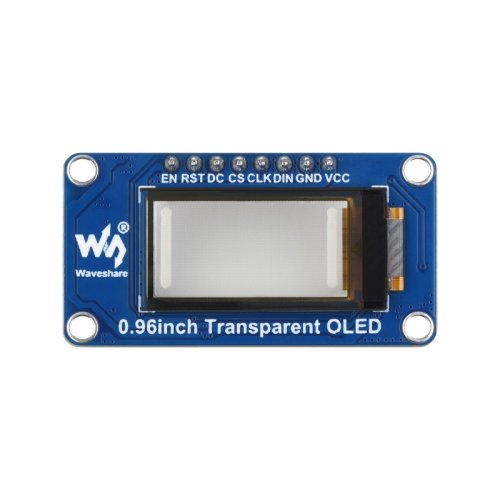

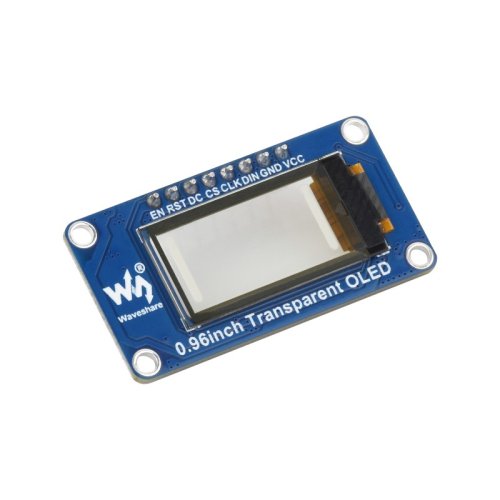

0.96inch transparent OLED display module with an SSD1312 driver IC

Uses 4-wire SPI communication by default and can be switched to I2C communication via resoldering an onboard resistor, offering good compatibility and fast data transmission

Comes with examples for Raspberry Pi, ESP32 and STM32, supporting text, graphics, and BMP images display for a quick start and further development

• Operating Voltage: 3.3V
• Display Panel: OLED
• Resolution: 128 × 64 pixels
• Pixel Size: 0.15 × 0.15 mm
• Communication Interface: 4-wire SPI (default) / I²C (selectable)
• Driver IC: SSD1312
• Display Size: 10.86 × 21.74 mm
• Outline Dimensions: 22.00 × 42.35 mm
• Display Color: White

* There are non-transparent white areas on both sides of the screen as shown, but they do not affect the display.

• VCC Power (3.3V input)
• GND Ground
• DIN Data input
• CLK Clock signal input
• CS Chip select (low active)
• DC Data/command selection: low for command, high for data
• RST: Reset (low active)
• EN: Power enable, on by default

Hardware connection

• Connecting to ESP32-S3 board via SPI

.

Documentations:

• Wiki

Package Includes:

• 1 x Waveshare 33163 0.96inch Transparent OLED Display Module, 128 × 64 Resolution, SPI/I2C Interface, SSD1312 Driver IC
