1.5inch OLED Display Module

Embedded SSD1327 driver chip, SPI / I2C Communication

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

Features at a glance

• Ultra-narrow bezel, conpact size, with onboard voltage translator
• Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
• Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications:

• Operating voltage : 3.3V / 5V : DISPLAY PANEL : OLED
• Resolution : 128 × 128 pixels : PIXEL SIZE : 0.185 × 0.185mm
• Communication Interface : 4-wire SPI / I2C : Driver : SSD1327
• Display size : 26.86 × 26.86mm : Module size : 44.5 × 37.0mm

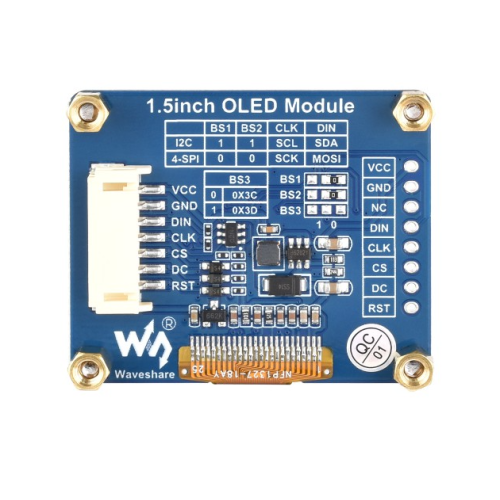

Control Interface:

• VCC : Power (3.3V / 5V input)
• GND : Ground
• DIN : Data input
• CLK : Clock input
• CS : Chip selection, low active
• DC : Data/Command selection (high for data, low for command)
• RST : Reset, low active

Hardware connection

connecting with Raspberry Pi via SPI interface

connecting with Arduino board via SPI interface

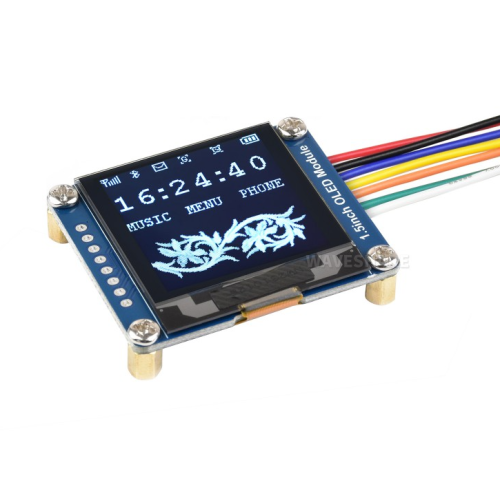

Usage Example

for reference only, the STM32 board is NOT included.

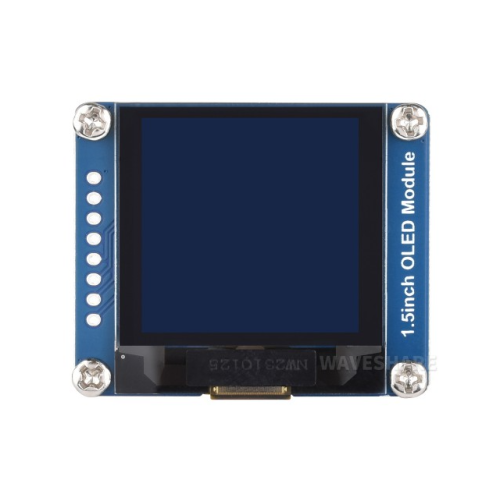

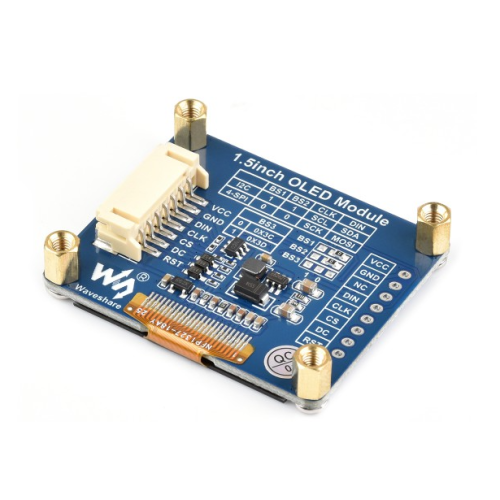

Product Show

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

• 1 x 1.5inch OLED Module
• 1 x PH2.0 7Pin
