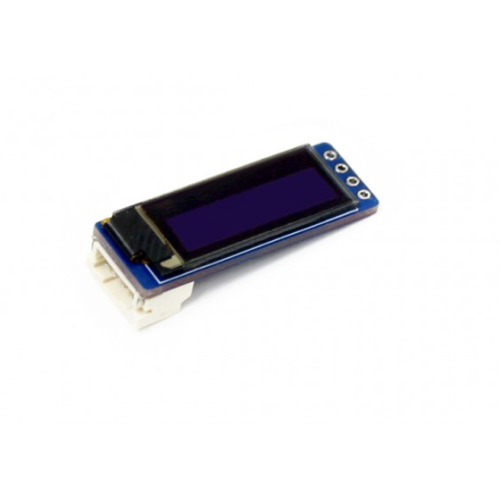

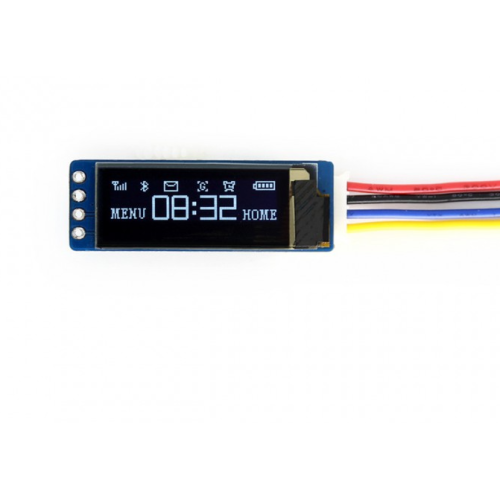

This is a general OLED display Module, 0.91inch diagonal, 128x32 pixels, with embedded controller, communicating via I2C interface.
Features:
- 0.91inch small form factor
- 128x32 high resolution
- I2C interface, requires only two signal pins
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications:
- Driver: 1306
- Interface: I2C
- Display color: White
- Resolution: 128x32
- Viewing angle: >160°
- Operating voltage: 3.3V / 5V
- Dimension: 36 x 12.5 (mm)

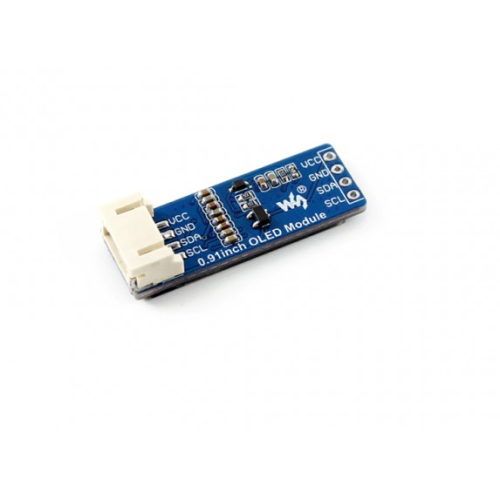

Interface:
- SYMBOL : DESCRIPTION
- VCC : Power (3.3~5V input)
- GND : Ground
- SDA : Data input
- SCL : Clock input
Dimensions:
Development Resources
Documentations:
Package Includes:
- 1 x 0.91inch OLED Module
- 1 x PH2.0 4Pin
WhatsApp
Waveshare 14657 128x32, General 0.91inch OLED display Module
- Brand:: Waveshare
- Product Code: :WaveS-14657-128x32-General
- Reward Points: :8
- Availability: :In Stock
- रo 774.00
-
रo 650.00
- Price in reward points: 774
-
- 20 or more रo 768.00
- 40 or more रo 761.00
- 100 or more रo 755.00
- 200 or more रo 749.00
