This newly launched real-time voltage monitoring module is specially designed for battery-powered smart robot cars. It aims to protect the battery by constantly monitoring voltage so as to prevent excessive discharge.
The module detects DC voltage 2.5V to 30V. Without external power supply, it can work directly when connected to the measured power supply. It offers 300ms/once refresh rate and about 0.1V measure error. Apart from that, the voltage monitoring can also play a role in voltage analysis. By observing the real-time voltage, we can judge the relationship between the running state of a smart robot car and the voltage, and then to further understand the working state.
Specifications:
- Detection Range: DC 2.5V-30V
- Power Supply Range: DC 2.5V-30V(Use the measured voltage as power supply)
- Maximum Input Voltage: DC 30V(Voltage beyond this may permanently damage the product)
- Permissible Error: ±1% (when voltage>10V, error is ±0.3V; voltage<10V,±0.10)
- Input Impedance: >100KΩ
- Operating Current: <23mA
- Refresh Rate: about 300ms once
- Display Mode: 0.36”three digits LED display
- Display Color: red
- Lead Length: 20cm
- Dimension: 23*15*10mm/0.91*0.59*0.39”(L*W*H, the length is 33mm when mounting lugs are included)
- Mounting Hole: pitch, 28mm; aperture, 2.8mm
- Operating Temperature: -10℃-65℃
Warranty: 90 days
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:

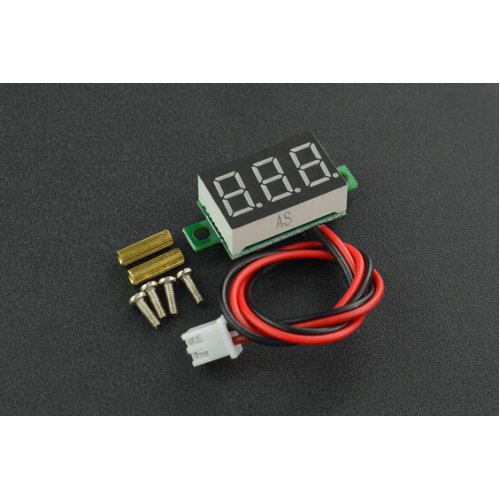

- 1 x Voltage Monitoring Module For Smart Car
- 1 x Copper Column/Screw Package
Voltage Monitoring Module For Smart Car
- Brand: DFRobot
- Product Code:DFR-Voltage-Module
- Reward Points:5
- Availability:In Stock
- रo 520.38
-
रo 451.94
- Ex Tax:रo 383.00
- Price in reward points:455
-
- 30 or more रo 518.02
- 60 or more रo 515.66
- 155 or more रo 502.68
