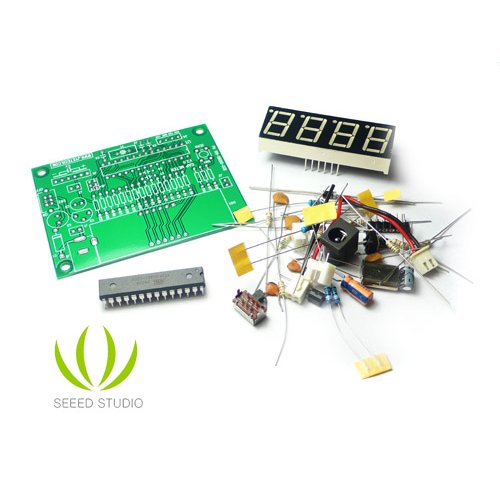

Capacitance Meter Kit
Features:
● About 1% accuracy
● Measure range: 1pF - 500uF
● Automatic range switch
● Zeroing available
● Real time serial output of measurement read-outs with time stamp
● Low cost and easy to build
Kit includes:
All parts excluding power supply
Schematic
Manual
This is a simple but very useful capacitance meter. New version fixed design errors in previous version and came with several improvements:
● Improved PCB layout.
● Added popular DC jack for easy connection of power supply.
● Added switch. This is desirable when running on battery.
● Added mounting holes.
● Polarity marked out.
● Smaller size.
Resources:
Capacitance Meter Kit
- Product Code:Seeed-Capacitance-Meter-Kit
- Reward Points:13
- Availability:In Stock
-
रo 1,493.88
- Ex Tax:रo 1,266.00
- Price in reward points:1266
-
- 45 or more रo 1,295.64
- 80 or more रo 1,210.68
