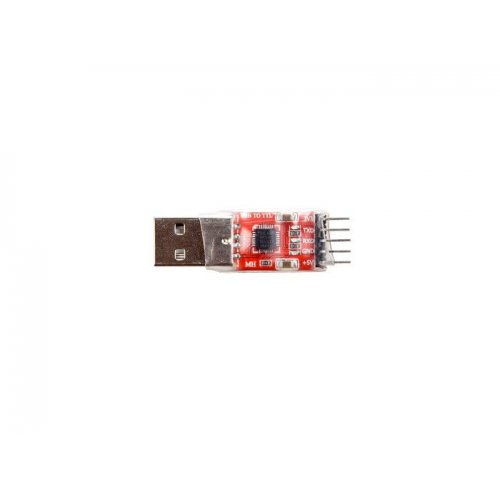

The USB CP2102 Serial Converter is a small adapter required for the RF Explorer 3G+ IoT for Arduino/Seeeduino board to accept firmware upgrades from a computer.

It can be used as well as extra Arduino Serial port if a Seeeduino or other small-form factor board is used with the RF Explorer 3G+ IoT board.

This USB converter can be also used for any electronic project if a microcontroller need to convert a serial UART signal into a USB compatible COM Virtual port.

Notes: The USB fixed foot of this product is not soldered.

Features:

• Compatible with RF Explorer 3G+ IoT for Arduino firmware upgrade process
• Enables USB / UART serial port in any electronic project

Specifications:

• Silicon Labs CP2102 USB adapter
• USB specification 2.0 compliant with full-speed 12Mbps
• Standard USB type A male and TTL 6 pin connector.
• 6 pins for 3.3V, RST, TXD, RXD, GND, 5V
• Baud rates: 300 bps to 1.5 Mbps
• Temperature Range: -40 to +85 ℃
• Compatible Windows/Linux/MacOS/Android

Documents:

• Product Wiki

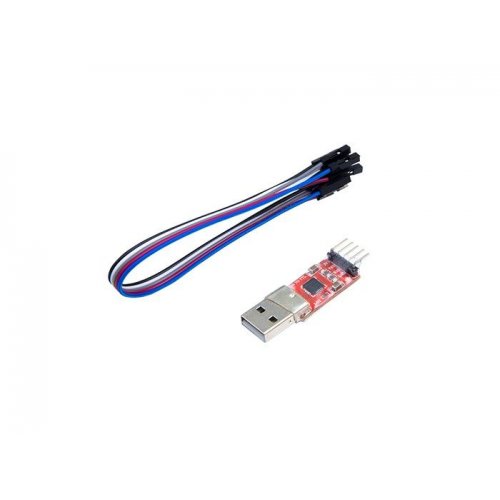

Package Includes:

• 1 x USB CP2102 Serial Converter

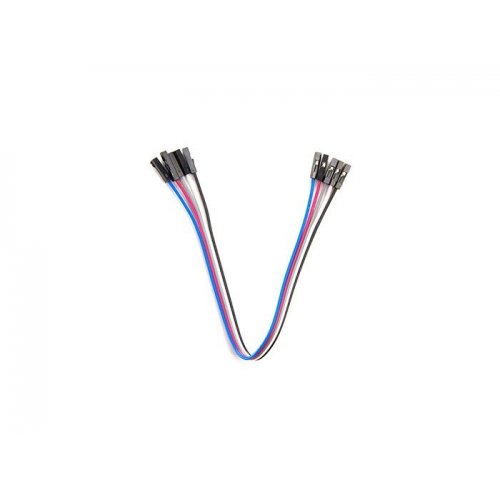

• 1 x Female/Female cable ribbon cable
