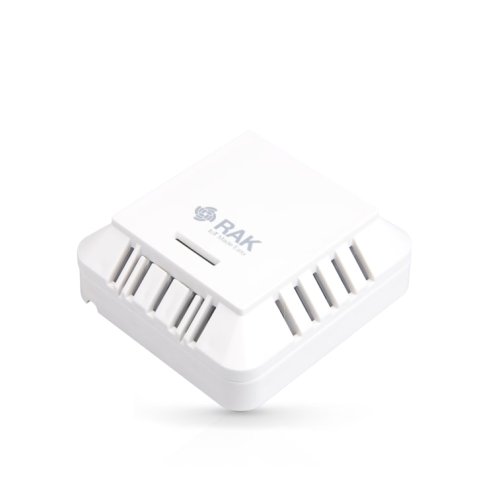

The WisNode Sense Home (RAK7204) is an LPWAN node that serves as an environmental monitoring station. The high-precision sensors, can measure changes in temperature, humidity, gas pressure, and provide an indoor air quality index.

All the accumulated data can be sent to a LoRaWAN gateway in order for it to be forwarded to the Cloud.

Because of its design, WisNode Sense Home can achieve a very low power consumption rate, which with the included non-rechargeable battery allows for 2+ years of operation.

The firmware has built-in functionality that allows the user to adjust the sampling interval of the sensors and the transmission cycle.

Features:

Measurement of a variety of environmental parameters
- Temperature, Humidity, and Pressure
Sensor
- BOSCH BME680 Integrated Environmental Unit
Compact size
- Built-in LoRa Antenna, swappable battery
- Easy to mount and maintain
Low power operation
- Standby current of less than 15 uA
- Adjustable sampling and transmission interval
Battery
- Replaceable 3500 mAh high capacity lithium battery with a battery life of more than 2 years

Specifications:

Working Temperature
- Operating Temperature: -40ºC +25ºC +85ºC
- Storage Temperature: -40ºC +25ºC +85ºC
Power Consumption
- Standby Current: <15 uA
- Current in Sensors Working Mode: <10 mA
- Current in LoRa Transmission Mode: <150 mA
Temperature Sensor Specifications
- Temperature Range: -40ºC +25ºC +85ºC
- Accuracy: 0.5ºC
- Output Resolution: 0.01ºC
Humidity Sensor Specifications
- Humidity Range: 0% r.H ~ 100 % r.H.
- Accuracy: +-3% r.H.
- Output Resolution: 0.008% r.H.
Gas Pressure Sensor Specifications
- Range 300: hPa ~ 300 hPa
- Accuracy: +-0.6 hPa
- Output Resolution: 0.18 Pa.
IAQ Sensor Specifications
- IAQ Range: 0 ~ 500
- Accuracy: 15
- Output Resolution: 1
Power Supply Battery Specifications
- Nominal Battery Voltage: 3.6V
- Battery Specification: ER18505
- Nominal Capacity: 3500mAh
- Temperature Range: -55ºC ~ 85ºC
- Battery Dimensions: 18mm ~ 50.5mm
