The Second Generation of RAK LoRa Antennas is a high-performance omnidirectional monopole.
To choose the appropriate antenna with regards to the LoRa frequency of your region, please refer to the TTN's guide, and/or the Regional Parameters Documentation provided by the LoRa Alliance.

Features:

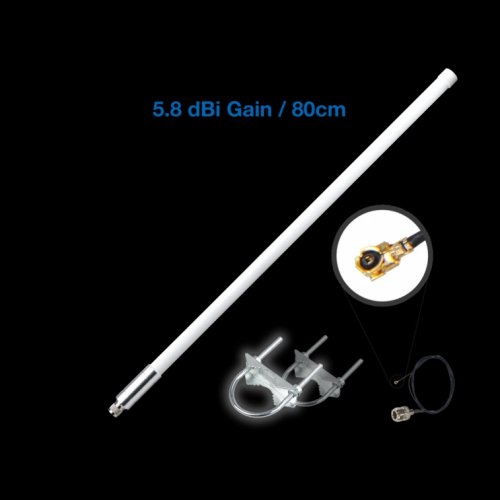

  • White 5.8dBi Fiberglass Antenna
    • Frequency: 860 - 930
    • Gain: 5.1 ~ 5.8
    • VSWP: 2
    • Beamwidth: 360 degrees
    • Impedance: 50 Ohms
    • Polarization: Vertical
    • Type: Dipole
    • Radome Body: Fiberglass
    • Connector: N-Type Male
    • Bracket Inclusion: 2pcs brackets
    • Dimensions: 800 ± 10mm
    • Operation Temp: -40ºC ~ +60ºC
    • Storage Temp: -30ºC ~ +75ºC
  • Black 5.8dBi Fiberglass Antenna
    • Frequency: 860~930 MHz
    • Max gain: 5.9 dBi
    • VSWR: ≤ 2
    • High efficiency
    • Vertically polarized monopole
    • N-type connector
    • Easy to mount with the included Installation kit
Documents:
Package Includes:
  • 1 x Antenna
  • 1 x Pigtail interface converter
  • 2 x Mounting brackets

Write a review

Please login or register to review

5.8dBi Fiberglass Antenna

  • Brand: Rakwireless
  • Product Code:RAK-Fiberglass-Antenna
  • Reward Points:65
  • Availability:In Stock
  • रo 7,632.24

  • Ex Tax:रo 6,468.00
  • Price in reward points:6468

  • 3 or more रo 7,572.06
  • 5 or more रo 7,510.70
  • 12 or more रo 7,450.52
  • 25 or more रo 7,389.16
