Fiberglass LoRa antenna with a gain of 3dBi, frequency range 860-930MHz, and 360mm length, comes with an antenna base and an RP-SMA cable for easy connection. Compatible with SenseCAP Solar Node P1 / P1 Pro and SenseCAP LoRa Outdoor / Indoor Gateway. Designed for 860–930MHz and built with durability in mind, delivering enhanced performance for your Meshtastic or LoRaWAN setups.

Features:

Designed to withstand harsh weather conditions: The outer shell is made of fiberglass material and features IP67 waterproof capability, providing complete dust resistance and the ability to withstand immersion in 1m of water for 30 minutes, ensuring reliable performance in outdoor environments.
Resistant to high and low temperatures: Whether in scorching summers or freezing winters, it operates stably. The operating temperature range is typically between -40°C and +85°C, adapting to various extreme climates.
Anti-corrosion and anti-aging: The fiberglass material is naturally resistant to corrosion and UV radiation, ensuring no cracking, deformation, or rusting during long-term outdoor use, with a service life of up to ten years.
360° omnidirectional coverage: It provides horizontal 360° and a certain vertical angle of omnidirectional signal coverage, ensuring a stable connection regardless of the device's direction, making it ideal for use as a base station or access point.
Strong compatibility: The standardized interface also ensures good compatibility with the vast majority of devices on the market that support this frequency band, such as LoRa gateways, industrial routers, and wireless data transmission radios.

Description:

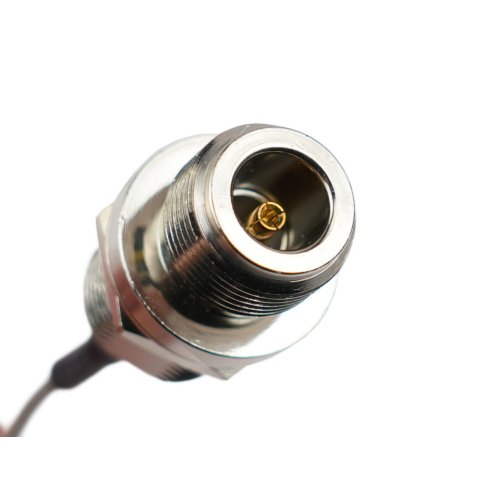

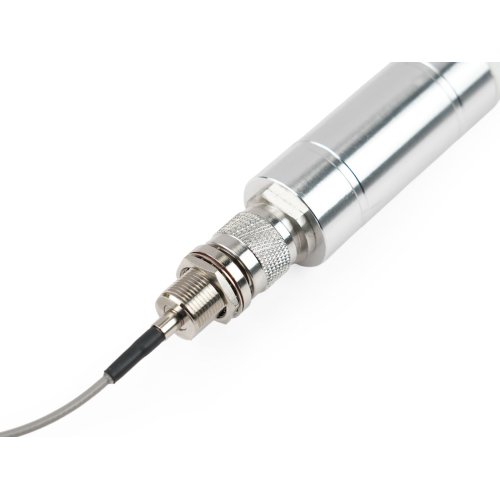

The 3dBi fiberglass antenna covers the 860-930MHz band, measures 360mm in length, and ships with an N-type female to RP-SMA male adapter cable, so it connects straight into any device with an RP-SMA female port, including SenseCAP LoRa Outdoor / Indoor Gateway and the SenseCAP Solar Node P1 / P1 Pro, without needing a separate adapter.

The fiberglass housing is rated IP67, so it holds up against dust, rain, and it's built to keep working across a wide operating range of -40°C to +85°C. That combination of weather proofing and temperature tolerance matters for anything left outdoors long-term, whether it's mounted on a pole, a wall, or a rooftop bracket. The antenna radiates omnidirectionally across a full 360° horizontal pattern, so it doesn't need to be pointed at anything, and its fiberglass shell resists UV degradation and corrosion well enough to hold up over a multi-year deployment.

Specifications:

Frequency (MHz) : 860-930
VSWR (Max) : 1.7:1
Peak Gain, dBi : 3.07
Peak Efficiency, % : 75.37
Nominal Impedance : 50 Ω
Max Power (ambient temp of 25°C) : 10 Watts
Azimuth Beam Width (deg) : Omnidirectional
Polarization : Linear
Radome : White
Storage Temperature Range (°C) : -40° C to +85°C
Operational Temperature Range (°C) : -40°C to +85°C
Material Substance Compliance : RoHS Compliant

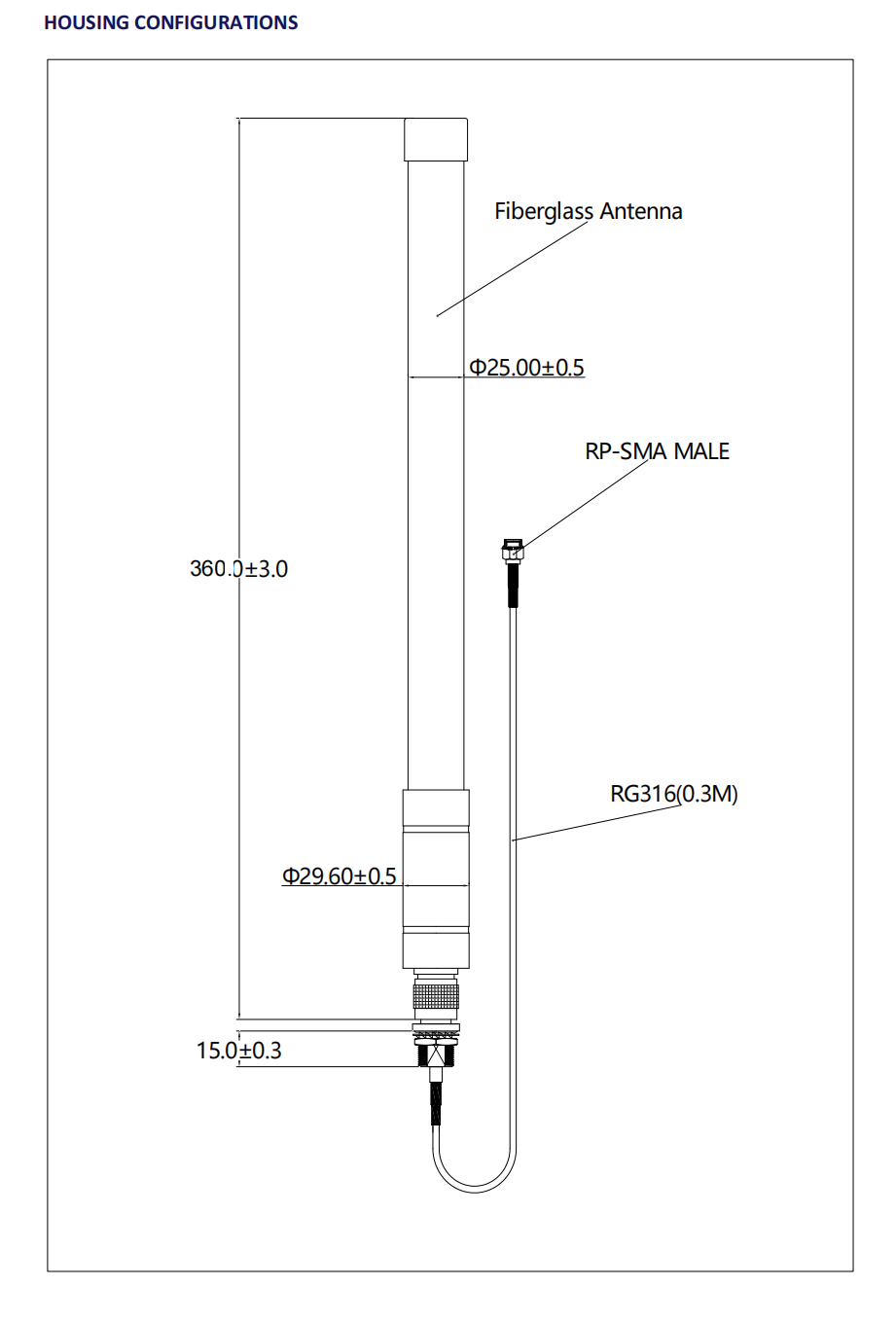

Hardware Overview:

Applications:

Outdoor Client Node Deployment: Mounts directly onto the SenseCAP Solar Node P1 / P1 Pro for long-term, unattended outdoor operation. The extra 3dBi gain helps the node hold a stable mesh link even when mounted on a pole or wall far from other nodes.

LoRa Gateway Range Extension: Replaces the stock antenna on a SenseCAP LoRa Outdoor / Indoor Gateway to push coverage further across a farm, campus, or industrial site. Its 360° omnidirectional pattern keeps the gateway connected to nodes in any direction without repositioning.

Industrial-Grade Durability: The IP67 housing and -40°C to +85°C rating keep it working through rain, heat, and freezing conditions.
