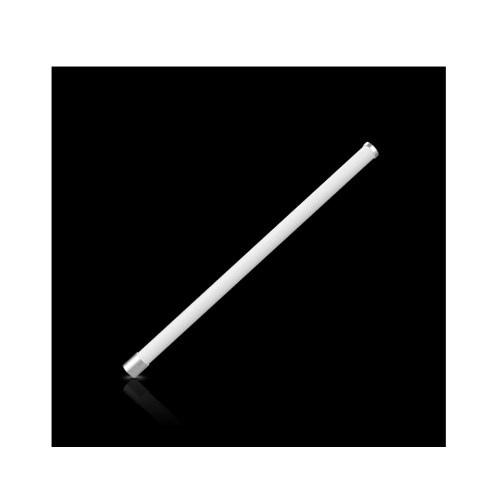

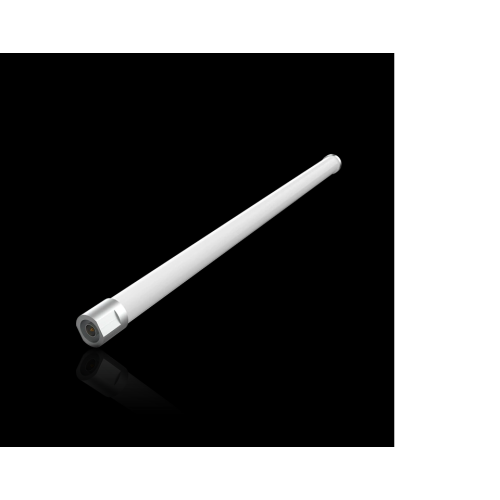

This is a high quality outdoor antenna designed to be deployed outdoor, for better range. The antenna connector is one with the antenna body, because this design increases the resistance of the antenna to external conditions further. It is IP67 rated, making it weather proof. It is designed to work in the sub-GHz bands like EU868, IN865 and RU864.

The coverage that this antenna provides makes it ideal for deployment outdoors in a high altitude spot within the outskirts of an urban area, where there is a relatively low number of other buildings and people in general. In such a scenario it is likely that the signal will be able to cover a longer distance until it reaches the intended recipient of the transmission. If you need the transmission signal to reach the center of the urban area or a nearby located village or town, it is likely that this antenna will provide you with the needed coverage.

Note:

• This antenna is designed to be directly mounted on the enclosure of the Gateway. It is suitable for RAK7240 and RAK7249. The antenna is compatible with Outdoor Enclosure for RAK Hotspot V2, Bobcat Outdoor Enclosure Kit, and Antenna Magnetic Base.

Features:

• Frequency: 863-870MHz
• Gain: 5.0dBi
• VSWR: ≤1.63
• Beamwidth: 360 degrees
• Impedance: 50 Ohms
• Polarization: Vertical
• Radome Body: Fiberglass
• Connector: N-Type Male
• Dimensions: Փ 27.0 mm x 480.0 mm
• Operation Temperature: -40°C~+75°C
• Storage Temperature: -40°C~+85°C
• IP67 rated

Documentation:

• 863-870MHz 5dBi Fiber Glass Antenna

• 1 x 5dBi Fiberglass Antenna
