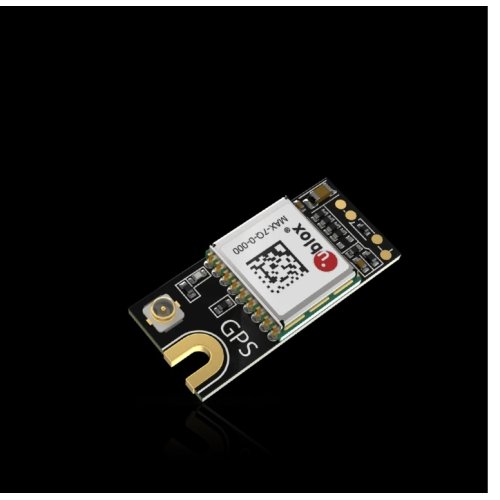

The RAK1910 WisBlock GNSS/GPS Location Module is based on the u-blox MAX-7Q which extends the WisBlock system with tracking location capabilities. A ready to use SW library and tutorial makes it easy to build up a GPS based location tracker.
- RAK1910 supports both GPS and GLONASS satellites for location acquisition. It can get a location x within 1 second and has a high accuracy of 2.5m in outdoor usage.
- RAK1910 combined with the RAK4631 WisBlock Core is ready to go system for a GPS-based location tracker that can send location information using LoRaWan® communication, LoRa® point to point connections, and BLUETOOTH® Low Energy.
- RAK1910 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.
- RAK1910 location sensor can be joined with other WisBlock sensors like an acceleration sensor or an environment sensor to collect additional data.
Features:
- Using the U-Blox MAX-7Q GPS module
- GNSS support for GPS/QZSS and GLONASS
- Low power consumption
- Small form factor
- Fast location fix.
- 29 s from cold start to first fix.
- 1 s from hot start
- High accuracy of 2.5m
- 10Hz update rate
- 1 m/s velocity accuracy
- 5 degrees Heading accuracy
Documentation:
- RAK1910 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository(opens new window)
- RAK1910 3D Model(opens new window)
- 24-Pin Male Connector 3D File(opens new window)
- WisBlock Sensor Tutorial
- Examples:
- For All WisBlock Core Modules:
- Sample Code: RAK1910
- For WisBlock Core RAK4630:
- Sample Code: GPS Tracker
Package Includes:
- 1 x RAK1910
- 1 x Active GPS Antenna
Rak WisBlock GNSS Location Module
- Brand: Rakwireless
- Product Code:RAK-WisBlock-GNSS
- Reward Points:28
- Availability:Discontinued
-
रo 3,335.86
- Ex Tax:रo 2,827.00
- Price in reward points:2827
-
- 5 or more रo 3,308.72
- 10 or more रo 3,282.76
- 25 or more रo 3,255.62
- 55 or more रo 3,228.48
