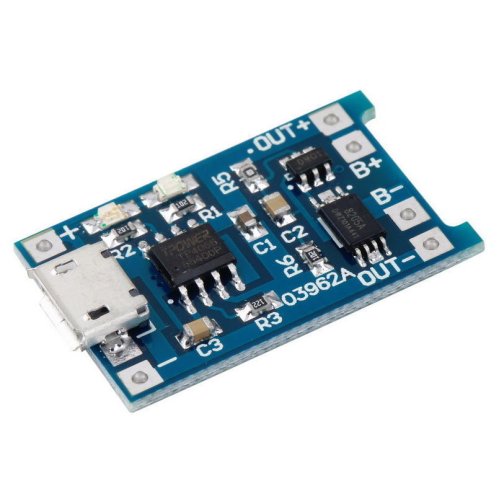

Lithium Battery Charger - DIY

1. MICRO USB input terminal with a female, can be directly input to do with the phone charger rechargeable lithium battery, And still retains the input voltage wiring pads, can be very convenient DIY.

2. It can be used for voltage 3.6 3.7V, etc. 18650, polymer and other lithium battery charge and discharge protection.

3. Input voltage: 5V

4. Charging cut-off voltage: 4.2V ± 1%

5. Maximum charge current: 1000mA

6. Battery over-discharge protection voltage: 2.5V

7. Battery overcurrent protection current: 3A

8. Board size: 17.2 mm x 27.55 mm

Lithium Battery Charger Micro USB - DIY

Product Code:PRC-Lipo-USB-Charger-DIY
Reward Points:1
Availability:In Stock

रo 71.98
Ex Tax:रo 61.00
Price in reward points:61

Qty

0 reviews / Write a review
