Description
Reviews (0)

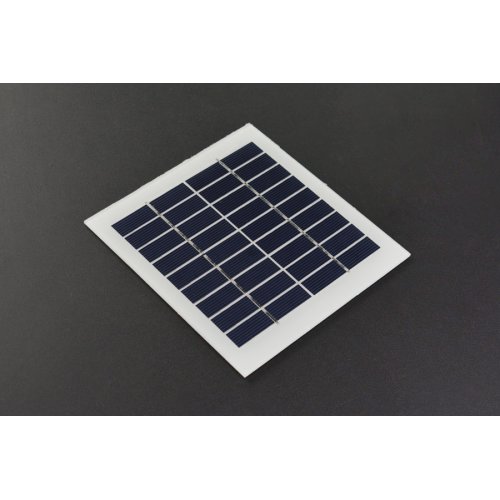

Need a clean energy source for your project? Check out this compact, high quality, high output endurable solar panel. The peak power output is around 9V at 220mA. Can also be used in series to work as a recharger for 12V batteries.

Ultra-white glass lamination process provides an efficient and waterproof surface for the panel. The back of the panel has separate aluminum wires.

Note: The above refers to the electrical performance parameters measured under standard test conditions, namely: light intensity 1000W / ㎡, spectrum AM1.5, cell temperature 25 ℃

Specifications:

Working voltage: 9V
Operating Current: 220mA
Open circuit voltage: 9.6V
Short circuit current: 500mA
Power: 2W
Use of the environment: -40 ℃ ~ 80 ℃
Performance: corrosion, moisture
Size: Length 135mm(5.31") X width 125mm(4.92")

Applications:

Solar Powering
Transport sector
Communication/communications

PROJECTS

Project 1. Sunflower - Arduino Solar Tracker

Introduction: In modern solar tracking systems, the solar panels are fixed on a structure that moves according to the position of the sun. In this project it designs a solar tracker using two servo motors, a light sensor consisting of four mini photocells and Arduino UNO board.

Hardware Components:

DFRduino UNO R3
I/O Expansion Shield for Arduino
DF05BB Tilt/Pan Kit
Mini Photocell x 4
Resistor 100kOhm x 4
DFRobot Solar Panel

Package Includes:

1 x Solar Panel (9v 220mA)

Solar Panel (9v 220mA)

Brand: DFRobot
Product Code:NR-DFR-Solar-Panel
Reward Points:7
Availability:Out Of Stock

रo 861.40
रo 748.12
Ex Tax:रo 634.00
Price in reward points:754
19 or more रo 857.86
38 or more रo 854.32
94 or more रo 831.90

Qty

0 reviews / Write a review
