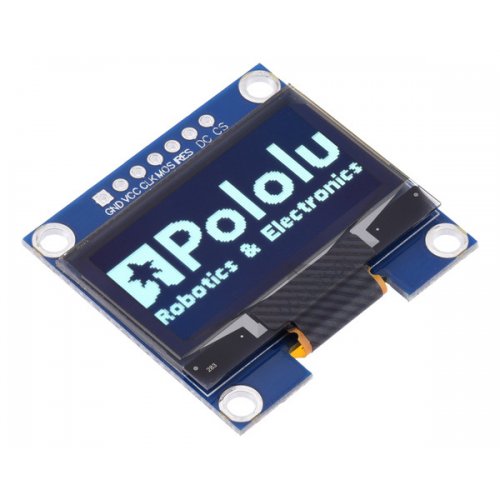

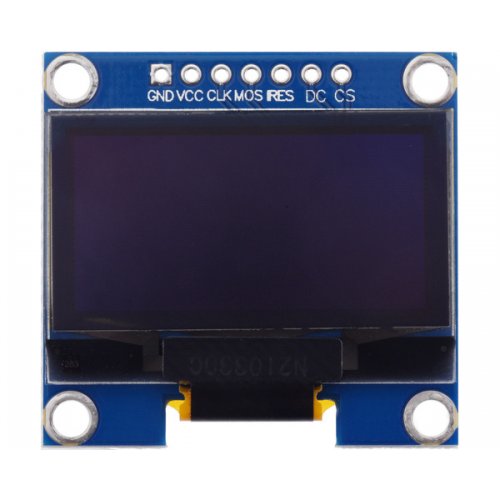

This small module consists of a 128×64 white OLED (organic light-emitting diode) display and all the electronics needed to control it over SPI using a standard SH1106 interface. The LEDs can be individually turned on or off to show monochrome graphics and text. Despite its compact size, the OLED display has good contrast because each pixel lights up individually, and since there is no backlight, unlit pixels can be very dark.

Specifications:

• Pixel color: white
• Resolution: 128×64 pixels
• Pixel pitch: 0.23 mm (110 DPI)
• Active display area: 1.3″ diagonal (1.16″ × 0.58″ or 29.4 mm × 14.7 mm)

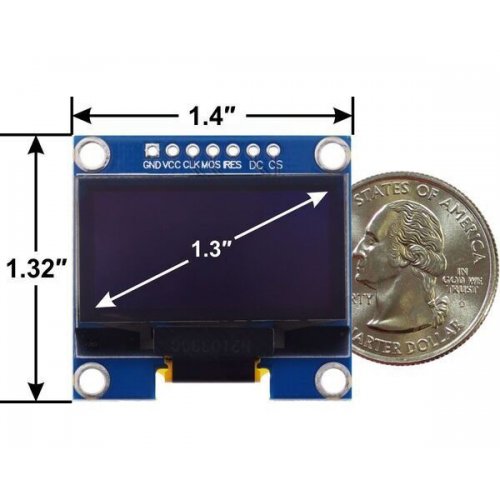

• Dimensions: 1.4″ × 1.32″ (35.4 mm × 33.5 mm)
• Supply voltage: 3.1 V to 5.5 V on VCC (NOTE: the logic pins are not 5V tolerant)
• Supply current: 40 mA typical with all pixels on (current draw depends on how much of the display is lit)
• Four mounting holes intended for M3

Documents:

• Datasheet
• Dimension Diagram
• 3D model

Package Includes:

• 1 x Pololu 3760 Graphical OLED Display: 128x64, 1.3inch, White, SPI
