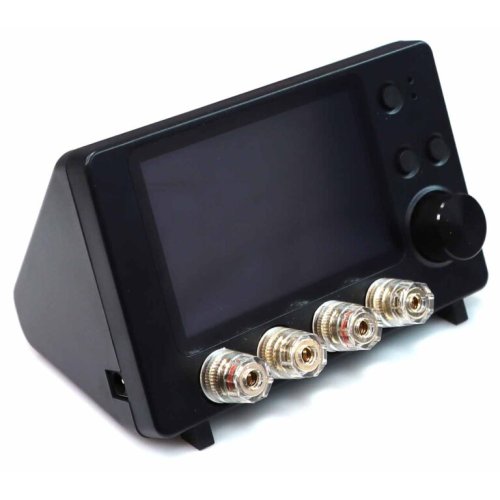

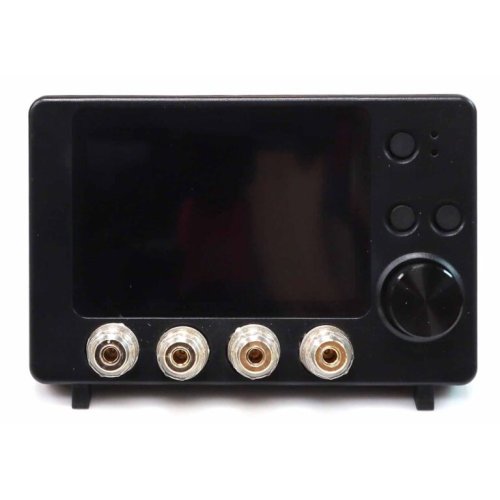

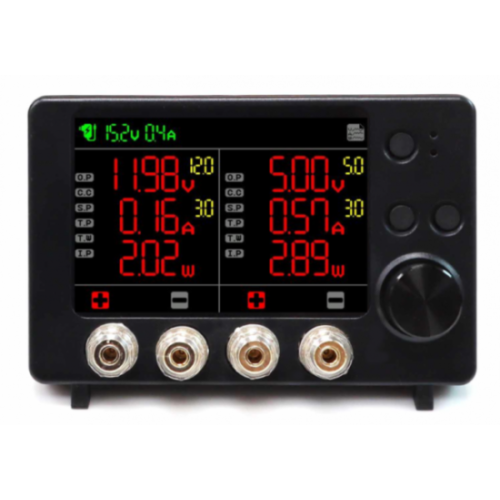

The easy way to make a Green platform. The ODROID Smart Power3 is an easily deployable power supply that collects voltage, current and power of the system load to enable developers to optimize energy consumption. LCD shows voltage, current and watt simultaneously. You can also see the graphical energy transient on your PC via USB interface.

Required (Not Included):

• Power supply unit:
• 15V4A Power supply (AU, EU, KR, UK, US)  or  19V7A Power supply
• (3pin AC power cord is not included for 19V/7A Power supply. You need a generic PC power supply AC power cord.)

Specifications:

• Output Channels: Two output channels (Max 50W + 50W)
• Output Voltage: DC 3.0 V ~ Input voltage -1 V
• Output Current: DC 3A (Max) per channel
• Measurement: Voltage, Current, Watt : Maximum sampling rate : 200Hz (5msec interval)
• Tolerant: 3% typical
• MCU: ESP32-WROOM-32E
• LCD: 480×320 3.5“ TFT LCD IPS grade wide viewing angle
• LED: RED(Power), BLUE(Alive)
• Button: ON/OFF/Menu/Cancel, Output Channel On/Off
• Encoder Button: Select/Setup
• Encoder Dial: Adjust Voltage and Ampere

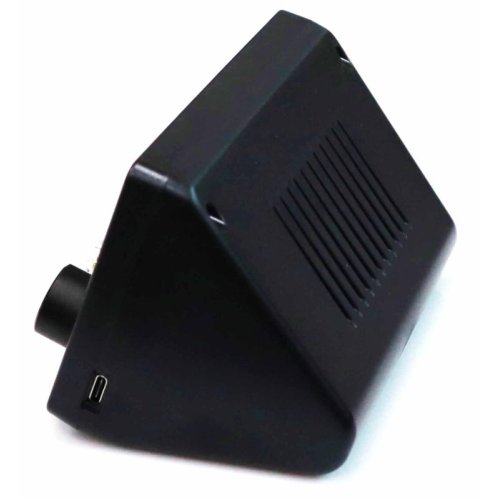

• USB-C port: Data communication with PC (5ms ~ 1s sampling rate), F/W Upgrade
• Output Terminal: 4mm diameter banana jack x 2
• Input Voltage: DC 9V ~ 21V

Note:

The supplier of the product has no replacement and/or refund policy as part of their product warranty/guarantee. Furthermore, the repair cost and the cost of shipping to and fro from South Korea has to be borne. As Fab.to.Lab is merely an intermediary we extend the exact same warranty terms to all customers of Harkernel.

Please find more details here: Supplier warranty terms and conditions: https://www.hardkernel.com/agreement/

Documents:

• Wiki

Package Includes:

• 1 x ODROID Smart Power3
• 1 x USB-C data cable
• 1 x DC plug cable(5.5mm/2.1mm) x 2(L type/S type) for ODROID-XU4/ODROID-N2/ODROID-C4
