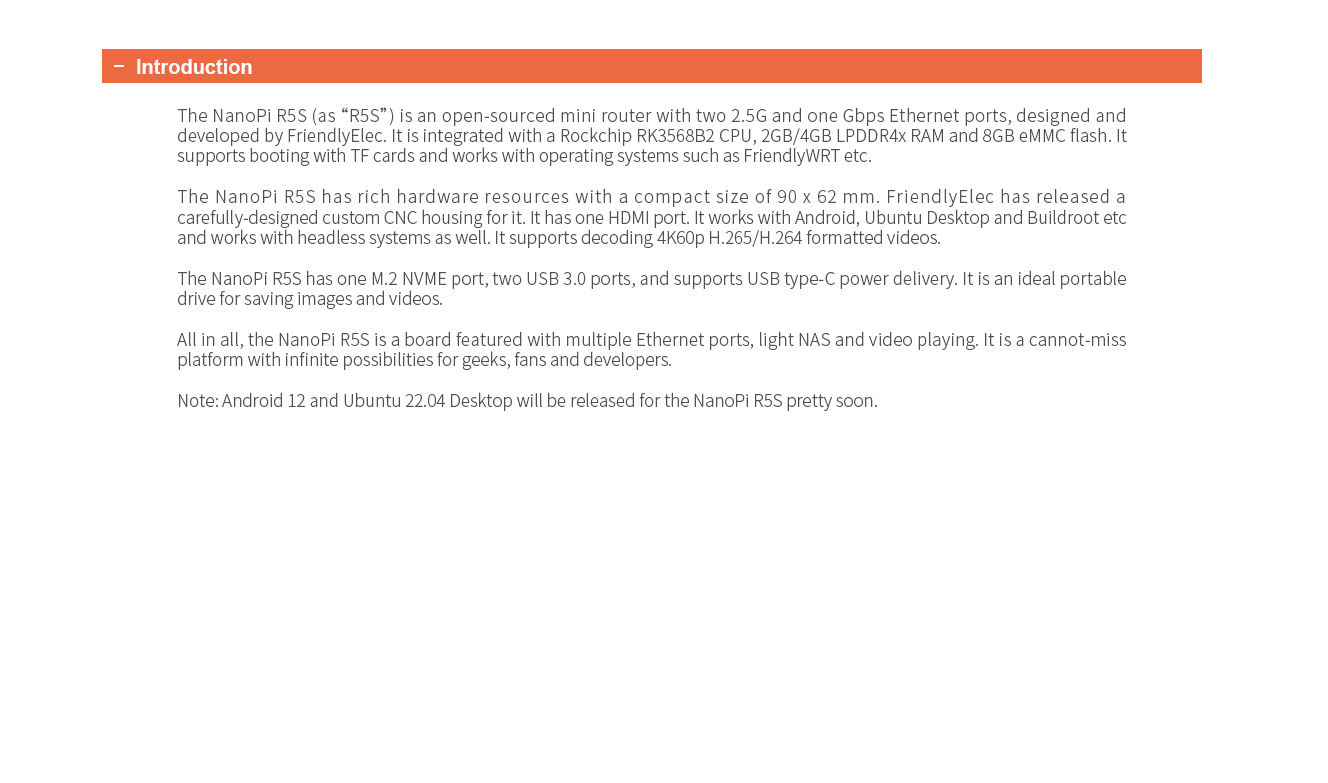

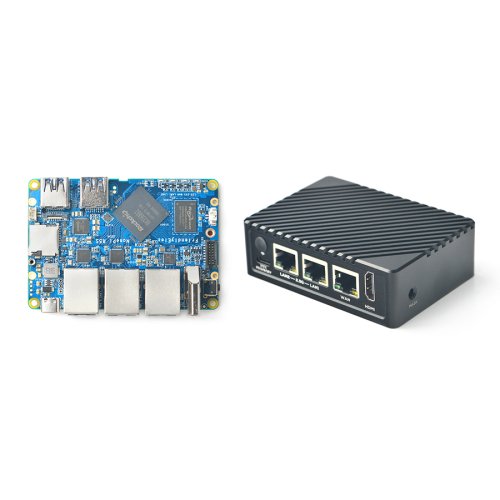

NanoPi R5S is an open-sourced mini router with two 2.5G and one gbps ethernet ports. designed and developed by FriendlElec. It is an integrated with a rockchip RK3568B2 CPU, 2GB/4GB LPDDR4x RAM and 8GB/16GB eMMc Flash.

Specifications:

Hardware Specifications:

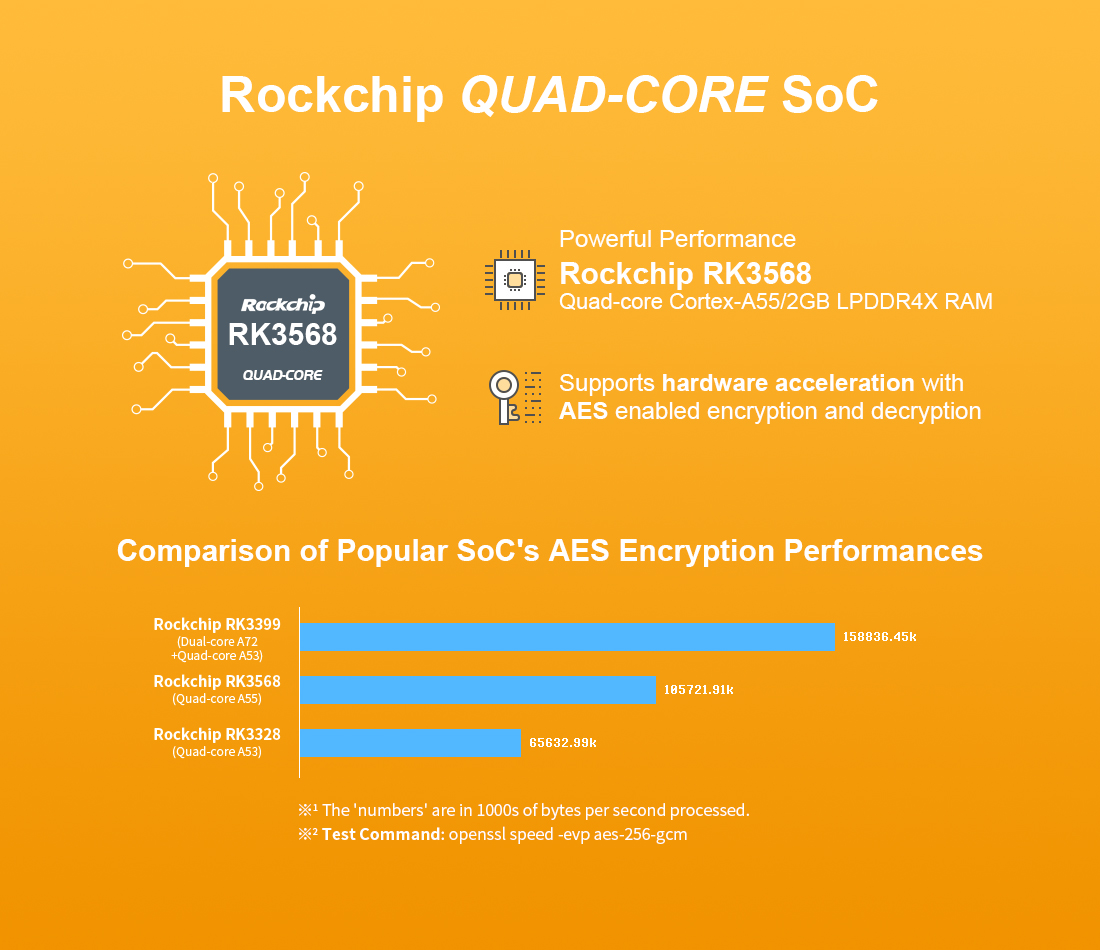

CPU: Model: Rockchip RK3568B2
Number of Cores: Quad-core ARM Cortex-A55
Frequency: 4 x Cortex-A55 up to 2.0GHz
GPU: Mali-G52 1-Core-2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile
VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
NPU: Support 0.8T
Memory RAM: 2GB LPDDR4X
Storage: MicroSD Slot: MicroSD x1, support UHS-I, for external storage up to 128GB
Flash: 8GB/16GB eMMC 5.1 Flash
PCIe: M.2 M-Key, PCIe2.0 x1, support NVME, PCIe WiFi etc
Onboard M3 PCB nut for mounting M.2 2280 module

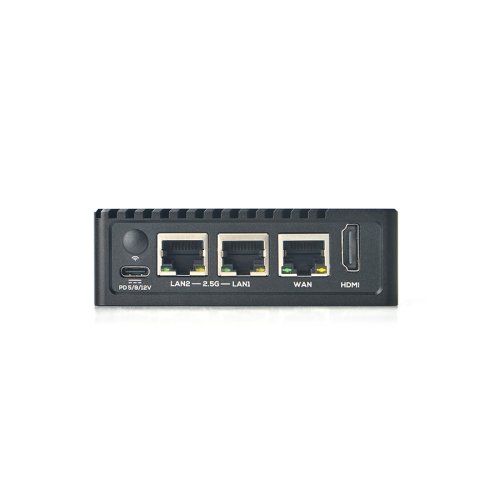

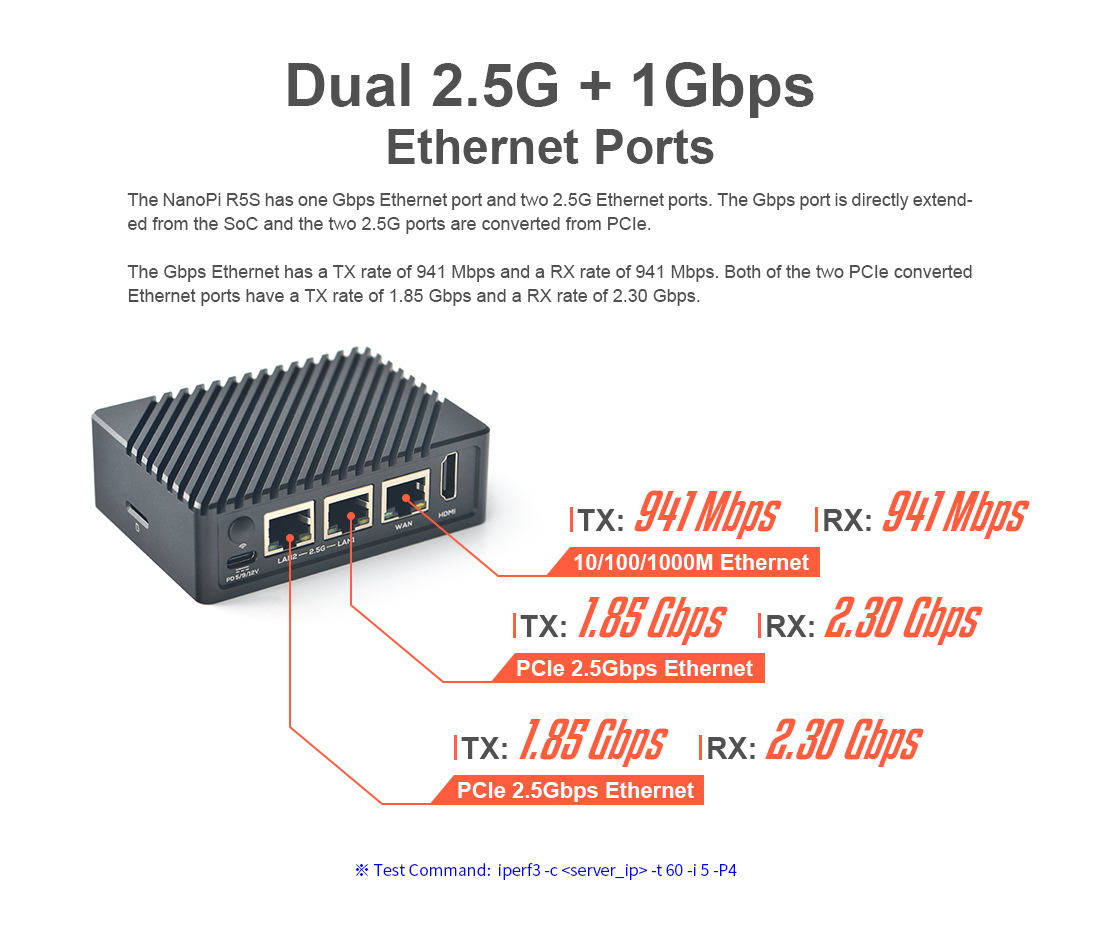

Connectivity: Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip

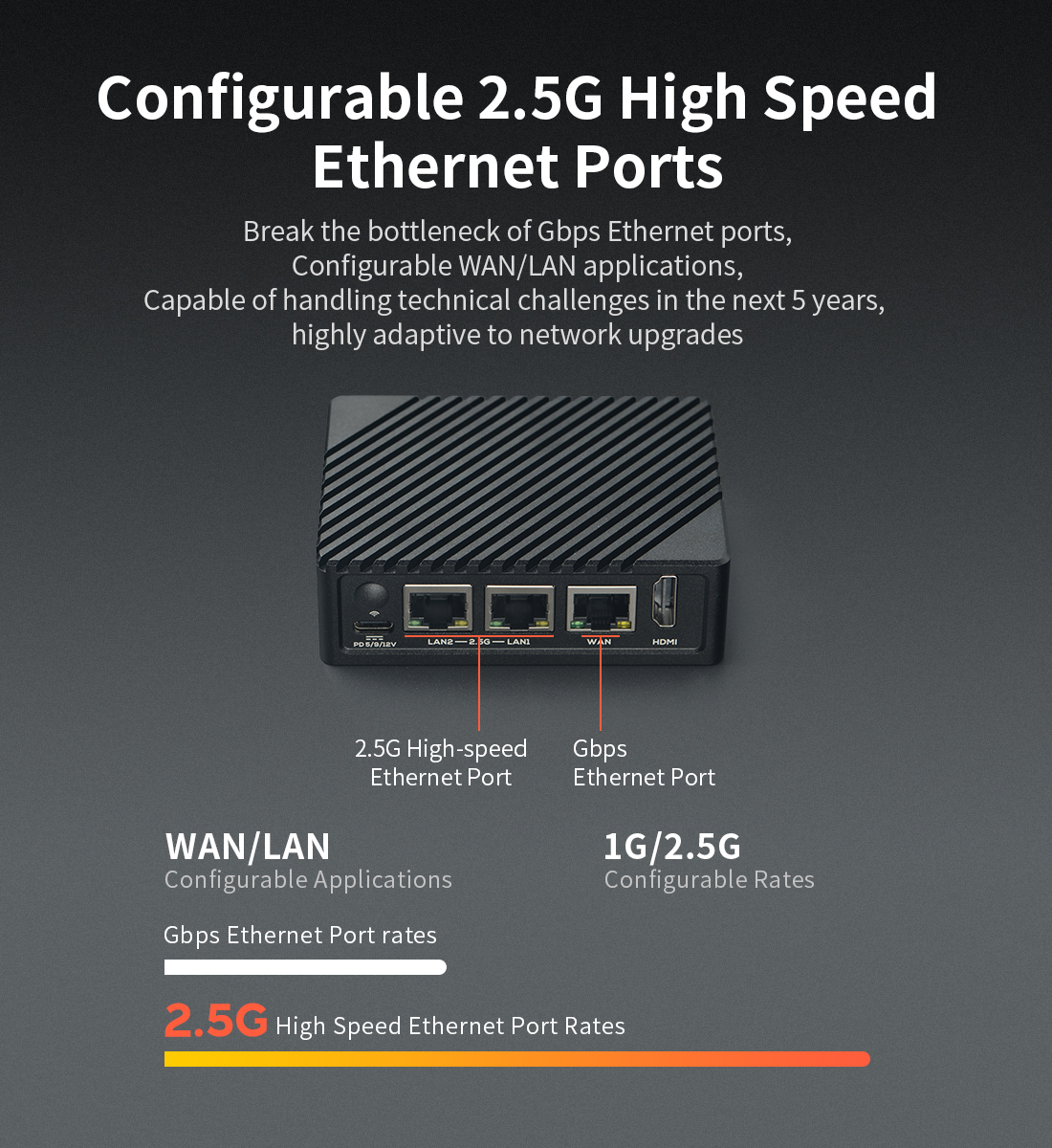

PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip
Video Output: HDMI: support HDMI1.4 and HDMI2.0 operation
support up to 10 bits Deep Color modes
support up to 1080p@120Hz and 4096x2304@60Hz
support 3-D video formats

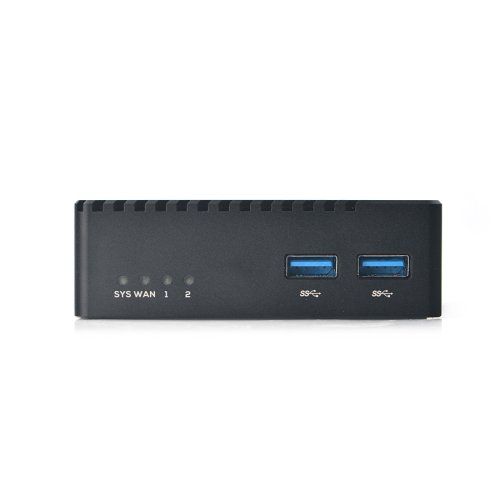

USB: USB 3.0 Host x2: USB Type A
USB 2.0 Host x1: 2.54mm 4pin-header
Type-C x1: Power Input Only
Pin-header: GPIO: 12-pin 0.5mm FPC connector
up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs
SD/MMC/SDIO/I2S: 2x8-pin 1.27mm connector
Compatible with SDIO3.0 protocol
Compatible with SD3.0, MMC ver4.51
4bits data bus widths
1x I2S with 2x SDO and 3x SDI
Debug: Debug UART x1, 3 Pin 2.54mm header, 3V level, 1500000bps
LED: SYS LED(Red) x1
WAN LED(Green) x1
LAN1 LED(Green) x1
LAN2 LED(Green) x1
Button: MASK Button x1 for eMMC update
Others: RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Fan Connector(ZH1.5-2A) x1, 5V
Working Temperature: 0℃ to 70℃
Power: DC 5V/3A, via USB-C connector or Pin header

OS Software:

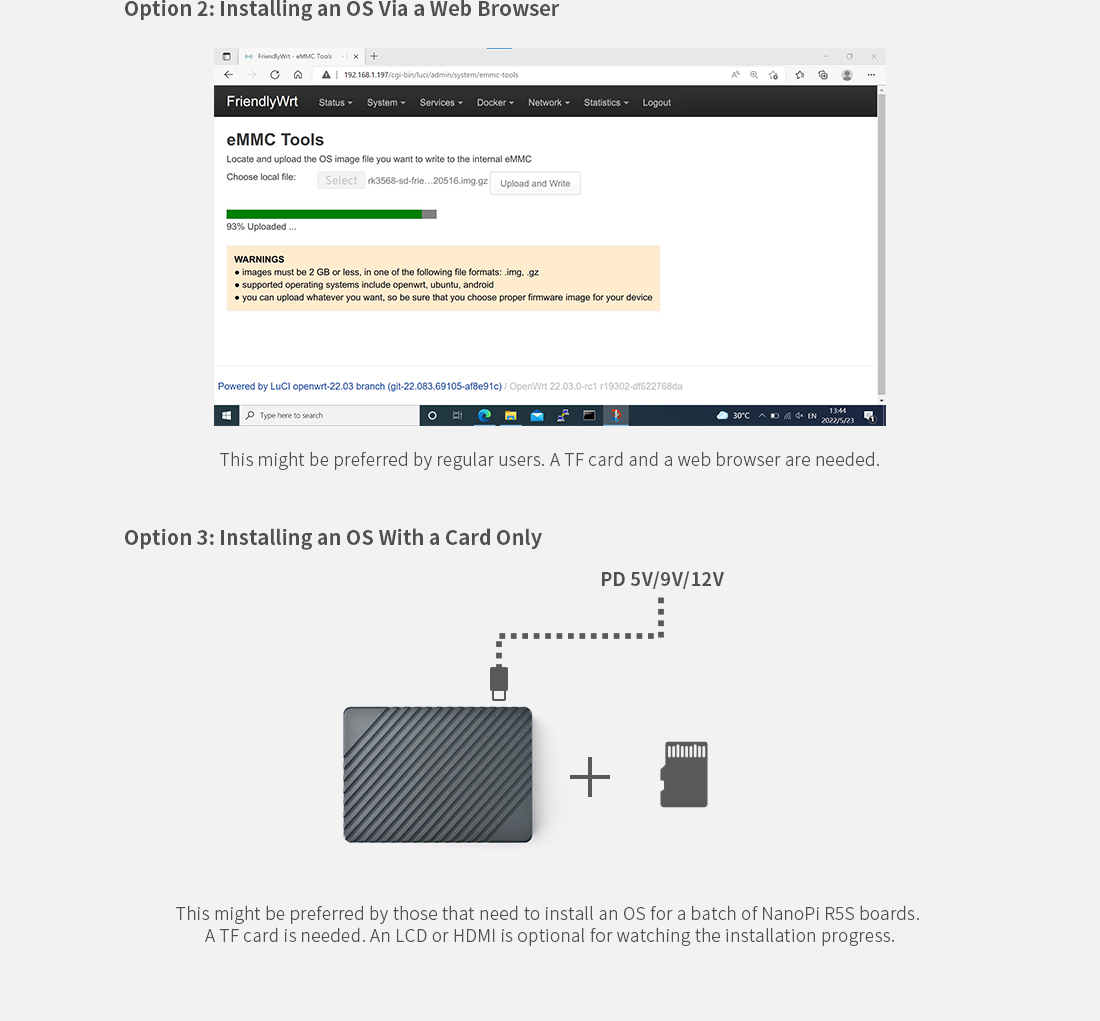

OS Support: FriendlyWrt 22.03 (64-bit)
FriendlyCore Focal Lite(Base on Ubuntu 20.04)
Kernel version: Linux-5.10-LTS & U-boot-2017.09

Dimention:

PCB: 8 Layer
Dimension: 62x90x1.6mm mm(without Case) / 68x94.5x30mm mm(with Case)
Weight: 57.5g（without Case) / 260g（with Case)

Documents:

wiki

Package Includes:

1 x NanoPi R5S

NanoPi R5S

Brand: FRIENDLYARM
Product Code:FARM-NanoPi-R5S
Reward Points:93
Availability:In Stock

रo 10,915.00
रo 9,168.60
Ex Tax:रo 7,770.00
Price in reward points:9250
2 or more रo 10,827.68
3 or more रo 10,740.36
8 or more रo 10,653.04
15 or more रo 10,565.72

Available Options

RAM

58) 4GB RAM-32GB eMMC

66) 2 GB RAM + 8GB eMMC

67) 4 GB RAM + 16GB eMMC

Combination

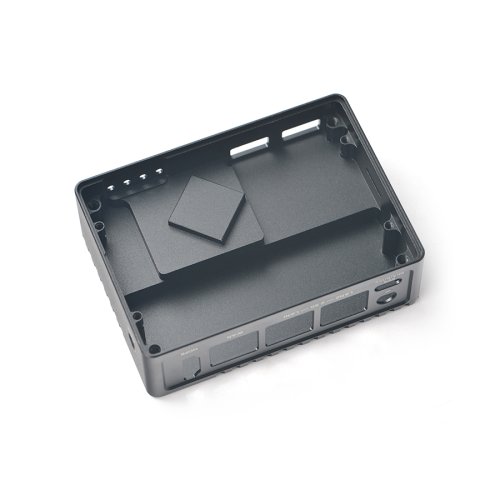

77) Combo with Case (+रo 1,833.72)

87) Bareboard Only
