Introduction:

The NanoPi R5C (as "R5C") is an open-sourced mini loT gateway device with two 2.5G, designed and developed by FriendlyElec.It is integrated with a Rockchip RK3568B2 CPU, 1GB/4GB LPDDR4X RAM and 8GB/32GB eMMC flash. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc.

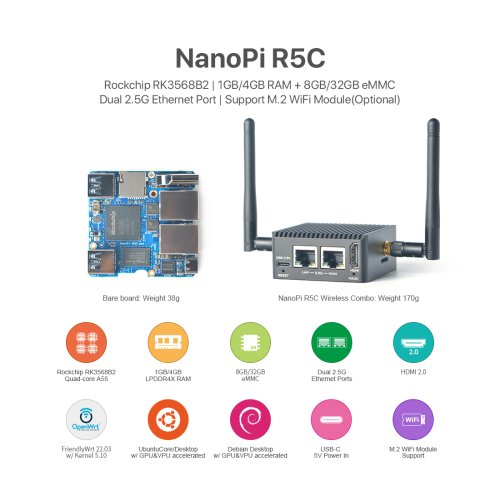

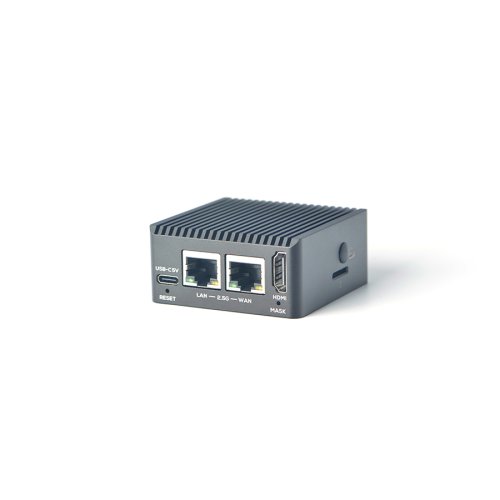

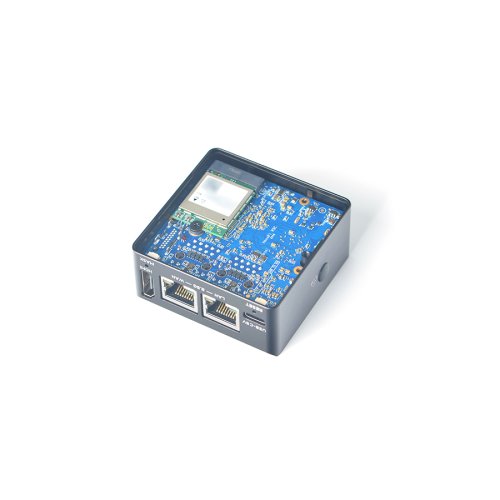

The NanoPi R5C has rich hardware resources with a compact size of 58 x 58 mm. FriendlyElec has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop and Buildroot etc and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.

The NanoPi R5C has one M.2 E-Key port, two USB 3.2 Gen 1 ports. It is an ideal portable drive for saving images and videos.

All in all, the NanoPi R5C is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.

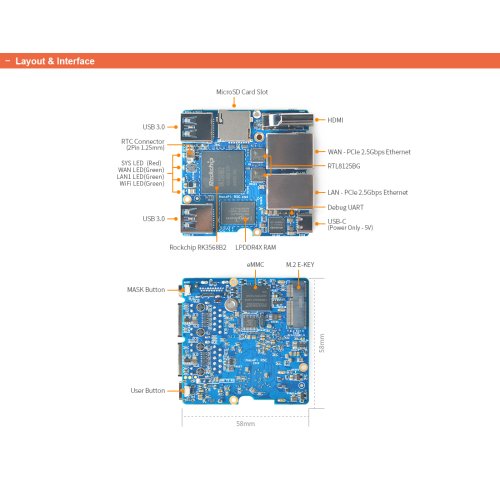

Specifications:

• CPU

• Model: Rockchip RK3568B2
• Number of Cores: Quad-core ARM Cortex-A55
• Frequency: 4 x Cortex-A55 up to 2.0GHz
• GPU: Mali-G52 1-Core-2EE, supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
• VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
• NPU: Support 0.8T
• Memory: RAM: 1GB/4GB LPDDR4X
• Storage:

• MicroSD Slot x1: support UHS-I
• Flash: 8GB/32GB eMMC
• Connectivity
• Ethernet: PCle 2.5G Ethernet Ethernet x2, RTL8125BG chip
• M.2 E-Key x1: PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module

• Video Output:

• HDMI: support HDMI1.4 and HDMI2.0 operation
• support up to 10 bits Deep Color modes
• support up to 1080p@120Hz and 4096x2304@60Hz
• support 3-D video formats
• USB
• USB 3.0 Host x2: USB 3.2 Gen 1 Type-A
• USB-C X1: Power Only(5V)
• Pin-header: Debug: Debug UART x1, 3 Pin 2.54mm header, 3.3V level, 1500000bps
• LED:
• SYS LED(Red) x1
• WAN LED(Green) x1
• LAN LED(Green) x1
• WiFi LED(Green) x1
• Button:
• MASK Button x1 for eMMC update
• User Button x1
• Others:
• RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS

• Working Temperature: 0°C to 70°C
• Power: USB-C, 5V input

• OS Support:

• FriendlyWrt 22.03 (64-bit)
• Debian Buster Desktop (64-bit)
• FriendlyCore Focal Lite(Base on Ubuntu 20.04)
• Buildroot
• Kernel version:
• Linux-5.10-LTS
• U-boot-2017.09

• PCB: 8 Layer
• Dimension: 58x58x1.6mm mm(without Case) / 62.5x62.5x29mm mm(with Case)

Documentations:

• WIKI

Package Includes:

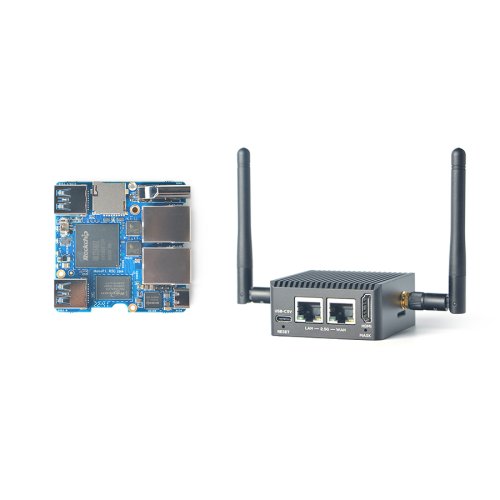

• 1 x NanoPi R5C Combo (with CNC Metal Case, Weight: 149g)

                                              (OR)

• 1 x NanoPi R5C Wireless Combo (WiFi Module Assembled, Weight: 170g)
• 2 x Antenna
