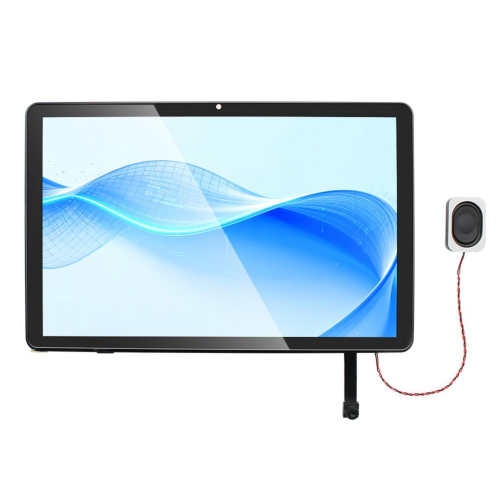

The MaTouch ESP32-P4 TFT with Touch 10.1" MIPI is a high-resolution, all-in-one HMI solution designed for smart control systems, industrial dashboards, and AI-enabled applications. This module integrates a powerful ESP32-P4 processor, a crystal-clear 10.1" IPS display, full multimedia support, and robust wired/wireless connectivity, all inside a refined, ready-to-use enclosure.

Powered by the RISC-V dual-core ESP32-P4 (400MHz) with 16MB Flash and 32MB PSRAM, the system handles complex UIs, LVGL rendering, and real-time multimedia tasks with ease. The independent ESP32-C6 wireless module adds Wi-Fi 6 and Bluetooth LE support for reliable, modern IoT connectivity.

One of the standout features is the stunning 10.1-inch 1280×800 IPS MIPI display, offering sharp visuals, vibrant colors, and smooth touch interaction—ideal for both consumer-facing interfaces and professional industrial panels.

Integrated 2MP MIPI camera (SC2336) delivers high-definition image capture, suitable for facial recognition, monitoring, visual interaction, and embedded AI vision tasks. With onboard microphone input, the device is also well-prepared for far-field voice control or audio-enabled applications.

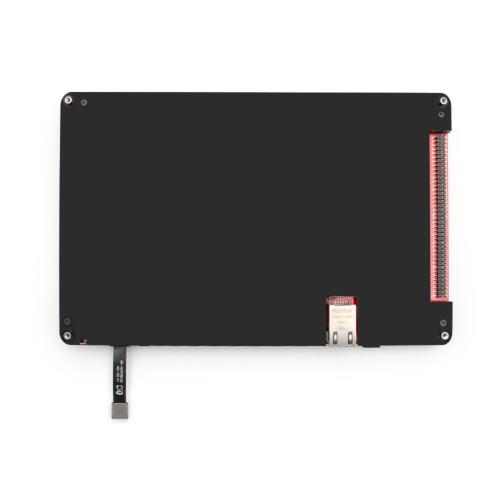

For stable and high-speed communication, the device features built-in Ethernet (IP101GRI)—making it suitable for industrial environments where wireless alone is not reliable.

A refined protective enclosure allows developers to deploy the device quickly without additional mechanical design. Each unit also comes with a 32GB MicroSD card pre-included, enabling logs, multimedia storage, and rapid local data processing right out of the box.

Key Advantages:

• Dual-Chip Architecture: ESP32-P4 + ESP32-C6
• Multiple Connectivity Options: Ethernet, Wi-Fi 6, BLE
• High-Resolution 10.1" IPS Display (1280×800)
• Onboard Microphone & Battery for RTC Support
• Includes 32GB MicroSD Card
• Full Software Ecosystem Support,LVGL/Arduino etc...

Features:

• Controller: ESP32-P4NRW32
• Flash: 16MB Flash
• PSRAM: 32MB
• Wireless: 2.4GHz Wi-Fi 6 (802.11ax)，Bluetooth® 5 (LE)(ESP32-C6FH4)
• LCD: 10.1", 1280x800 resolution
• LCD Driver: JD9365
• LCD interface: MIPI
• Touch Panel: 10 Points Touch, Capacitive
• Touch Panel Driver: GSL3680
• USB: 1 * USB to UART, 1 * USB_NATIVE, 1 * USB_CDC/JTAG, 1 * USB_OTG, 1 * USB_DEVICE,
• Power Supply: USB Type-C 5.0V(4.0V~5.25V)
• Button: Flash button and reset button
• Camera Maximum Resolution: 2 Million Pixels, 1920H×1080V
• Camera Driver: SC2336
• Camera interface: MIPI
• Ethernet: IP101GRI
• Microphone input: Yes
• Audio output: ES8311
• MicroSD: Yes
• Charger: Yes
• Battery Connector: Yes
• Expansion interface: 26 * GPIO
• Arduino support: Yes
• LVGL support: Yes

Documentations:

• Hardware/Firmware

Package Includes:

• 1x Makerfabs MaTouch ESP32-P4 TFT with Touch 10.1" MIPI
