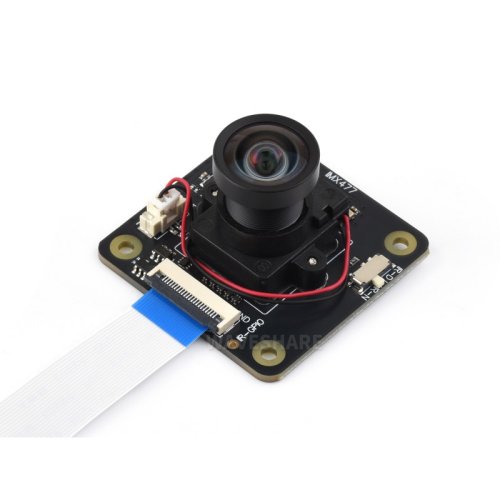

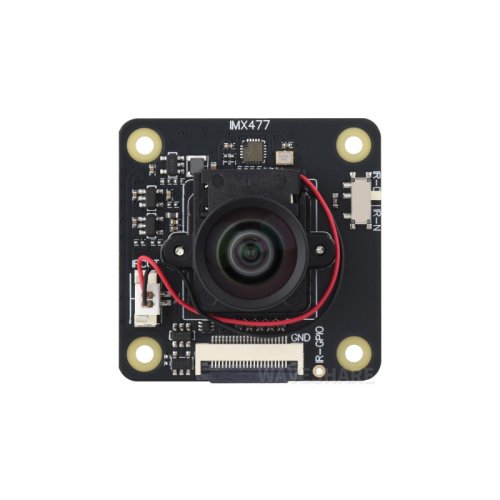

IMX477 IR-CUT camera module:

IMX477 sensor, 12.3MP, Applicable for Raspberry Pi / Jetson / RDK Series Boards

Specifications:

• Sensor : Model : IMX477
• Resolution : 12.3MP, 4056 × 3040
• CMOS diagonal length : 7.9mm
• Pixel size : 1.55µm (H) × 1.55µm (V)
• Shutter Type : Rolling Shutter
• Camera : Aperture (F) : 2.8
• Focal length (EFL) : 2.7mm
• Field of view (FOV) : 113°(D)
• Distortion : <-1.5%
• Operating voltage : 3.3V
• Applications : suitable for AI applications like facial recognition, road mark recognition, license plate number recognition, and so on.

Ultra High Resolution:

The IMX477 sensor supports up to 12.3MP resolution, capturing every detail in the picture

Built-in IR-CUT for all-day use:

allows the user to switch filters freely according to the usage scenario

Supports Multiple Boards and Kits:

Compatible With Raspberry Pi Series, CM3/3+/4/5 Series, Zero Series, Jetson Series (Requires dedicated driver), and RDK Series Boards

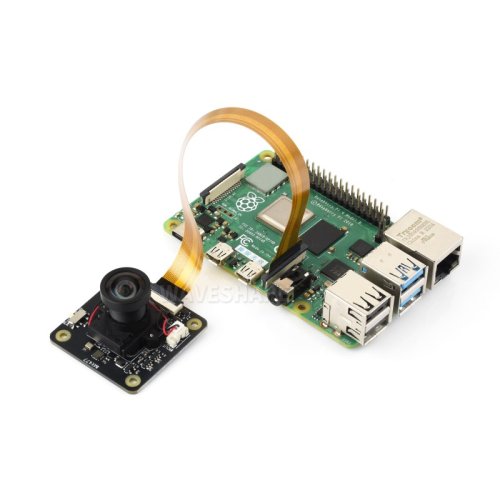

Connecting with Raspberry Pi 4B                                                                    Connecting with Raspberry Pi 5

Connecting with CM4 / CM5 IO Board                                                            Connecting with Zero 2 W

Connecting with Jetson Nano Kit                                                                            Connecting with Jetson Orin Kit

Connecting with RDK X5

for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 4 IO Board, Zero 2 W, Jetson Nano Kit, Jetson Orin Kit and RDK X5 are NOT included.

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

• 1 x IMX477 IR-CUT Camera (B)
• 1 x 15PIN to 22PIN Cable
• 1 x 22Pin cable (opposite sides)
