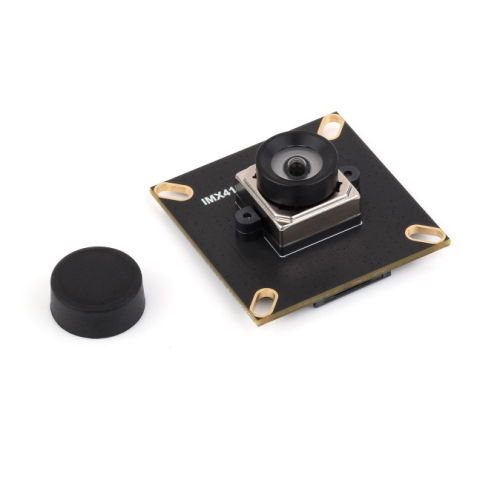

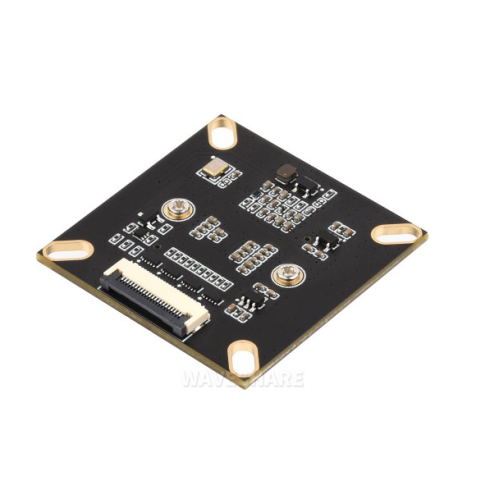

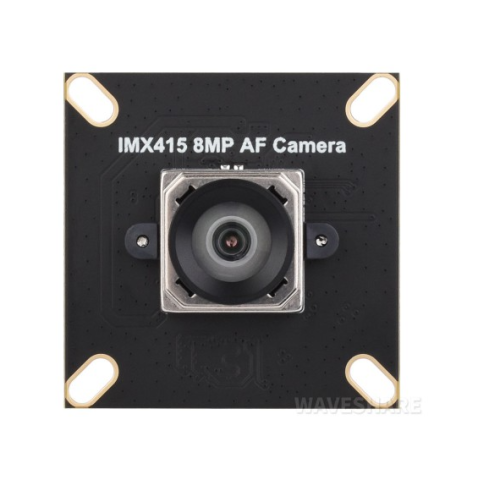

IMX415 High-resolution autofocus camera:

8MP | MIPI Interface | Autofocus | 95.5° D-FOV | distortion-free

Specifications:

• Sensor : IMX415 : CMOS Size : 1/2.8″
• Camera Type : Color : Recommended
• Recording Pixels : Approx. 8.29MP (3840 × 2160)
• Image Size : Diagonal 6.43mm : Unit Cell Size : 1.45um (H) × 1.45um (V)
• Aperture : F2.4 : Focal Length : 2.88mm
• FOV : 95.5° : Distortion : <1%
• Applications : Suitable for AI applications such as facial recognition, road marking recognition, license plate recognition, etc.

Flexible Autofocus:

Take photos smoothly without jamming, flexible and free

Note: The host device must support autofocus functionality.

Wide field of view:

Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle

Distortion-Free:

Equipped with distortion-free lens with a distortion rate of less than 1%,

delivering undistorted imaging and more accurate reproduction of real-world scenes

Note: In the industry, lenses with distortion rate less than 2%

are generally considered distortion-free.

Supports the Raspberry Pi series boards:

Compatible With Raspberry Pi 5 / Zero Series / Zero 2W Series Boards

Extra FPC Cable Is Required For Raspberry Pi 4B / 3B+ / 3B Series Boards

Connecting with Raspberry Pi 5                                                                                              Connecting with Raspberry Pi 4B

Connecting with Zero 2 W                                                                                                                Connecting with Zero W

for reference only, the Raspberry Pi 4B, Raspberry Pi 5, Zero W, Zero 2 W,

and yellow FPC are NOT included.

Outline dimensions:

Resources & Services:

Documentation:

• Wiki

Package Includes:

• 1 x IMX415 8MP AF Camera
• 1 x FFC 22PIN cable (opposite) 200mm
