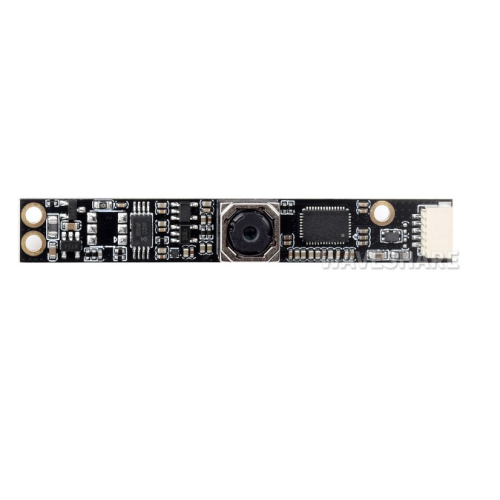

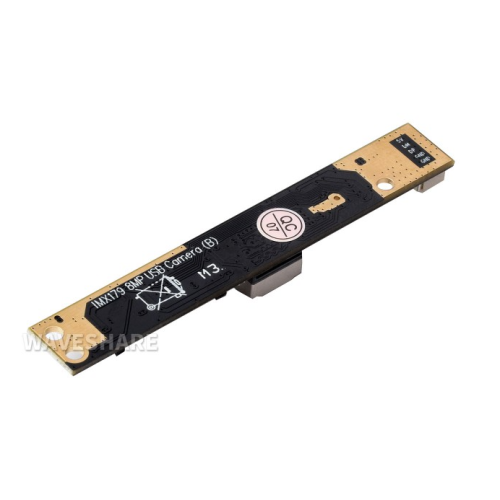

8MP camera module:
IMX179 sensor, USB2.0 port, auto focusing

Specifications:
- Pixels: 8MP
- Sensor: IMX179
- Interface: USB 2.0
- Camera:
- Sensor size: 1/3.2 inch
- Aperture (F): 2.0
- Focal length (EFL): 3.8mm
- Field of view (FOV): 75°
- Distortion: < 1.5%
- Focusing: Auto focusing
- Image:
- Format support: MJPG, YVY2
- Static image resolution: 3264 × 2448
- Video recording:
- MJPG:
- 640 × 480 / 30FPS
- 800 × 600 / 30FPS
- 1280 × 720 / 30FPS
- 1600 × 200 / 30FPS
- 1920 × 1080 / 25FPS
- 2048 × 1536 / 15FPS
- 2592 × 1944 / 15FPS
- 3264 × 2448 / 15FPS
- YUY2:
- 640 × 480 / 20FPS
- 800 × 600 / 20FPS
- 1280 × 720 / 5FPS
- 1600 × 1200 / 5FPS
- 1920 × 1080 / 2FPS
- 2048 × 1536 / 1FPS
- 2592 × 1944 / 2FPS
- 3264 × 2448 / 1FPS
- Operating voltage: 5V ± 5%
- Camera size: 8.5 × 8.5mm
- Module size: 9 × 62mm

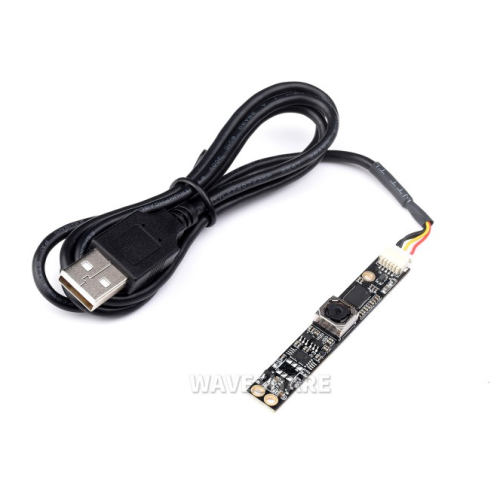

Connecting with USB cable:

Product show:

Outline dimensions:

Resources & Services:

Documentations:
Package Includes:
- 1 x IMX179 8MP USB Camera (B)
WhatsApp
Waveshare 25817 IMX179 8MP USB Camera, Fixed-focus, Auto Focusing
- Brand:: Waveshare
- Product Code: :WaveS-25817-IMX179
- Reward Points: :32
- Availability: :In Stock
-
रo 3,209.00
- Price in reward points: 3209
-
- 5 or more रo 3,183.00
- 10 or more रo 3,157.00
- 25 or more रo 3,132.00
- 45 or more रo 3,106.00
