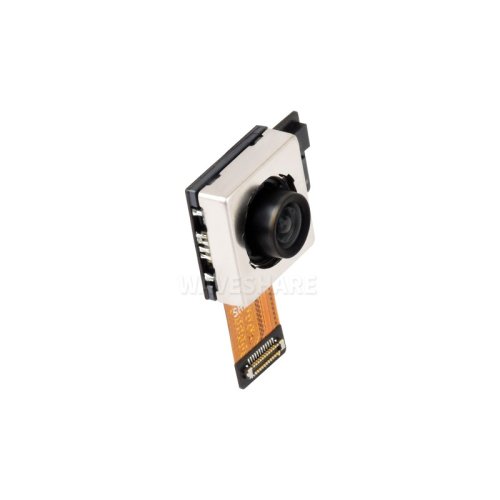

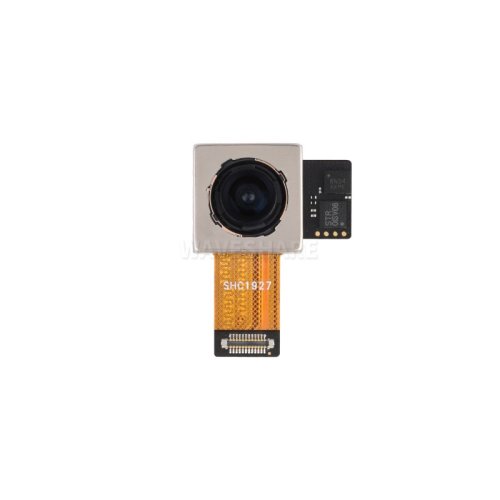

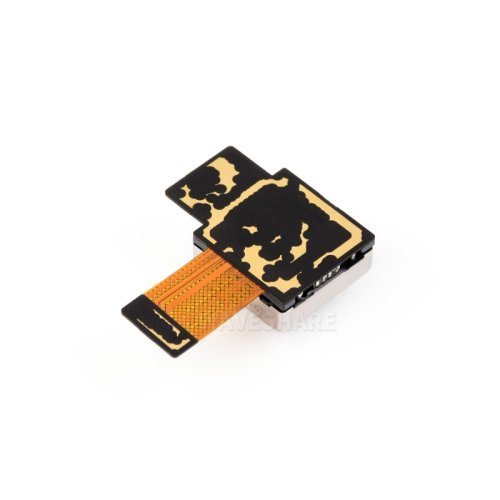

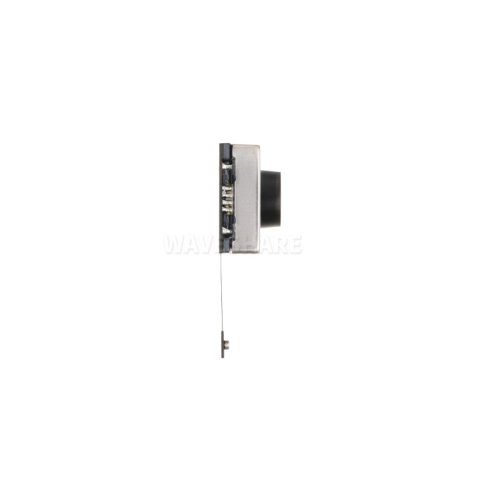

IMX563 12MP OIS Camera Module

IMX563 Sensor, Dual-Axis Optical Image Stabilization

Product Description

This MIPI camera module features an IMX563 12MP CMOS image sensor that delivers excellent performance, including high sensitivity, low noise, and fast response. It integrates an autofocus lens with a 122° ultra-wide field of view and a dual-axis optical image stabilization (OIS) system. The module is suitable for a diverse range of applications, such as smartphones, robotic vision, drone aerial photography, and AIoT smart devices.

Specifications:

• Sensor : Model : IMX563
• Resolution : 4046 × 3344 (12MP)
• CMOS Sensor Size : 1/2.55 inch
• Pixel Size : 1.4 × 1.4 μm
• Lens : Field of View (FOV) : 122° (D) × 107.2° (H) × 90.1° (V)
• Aperture (F.No) : 2.2
• Effective Focal : Length (EFL) : 2.17 mm
• Depth of Field : 10cm ~ ∞
• Distortion : < 5.6%
• Focus Mode : Autofocus
• Optical Filter : Built-in 650nm optical filter
• Image Stabilization : OIS (±3° stabilization angle, >25 dB)
• VCM Driver IC : Autofocus : DW9800V
• OIS : AKM7323
• Frame Rate : 120fps at Full Resolution;
• 240fps at 4K/2K;
• 960fps at 1080p
• Output Format : 10-bit / 8-bit RAW
• Interface : 24-pin board-to-board connector
• Operating Temperature : −20°C to 70°C

122° Ultra-Wide Field of View

A 122° diagonal field of view captures more of the surrounding scene

Autofocus Lens:

Built-in open-loop voice coil motor (VCM) enables autofocus and automatically adjusts the focus according to the shooting distance

Dual-Axis Optical Image Stabilization:

±3° Stabilization Compensation for Stable Images Even in Motion

4Lane MIPI CSI-2 Interface:

24pin board-to-board connector for embedded applications

Outline Dimensions:
