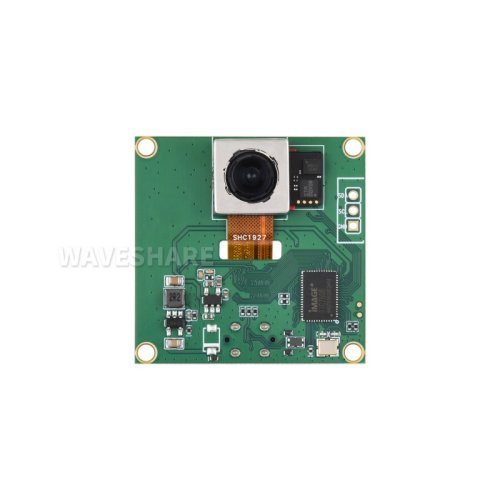

IMX563 12MP OIS USB Camera (A)

IMX563 Sensor, Dual-Axis Optical Image Stabilization

Product Features

This USB camera module features an IMX563 12MP CMOS image sensor that delivers excellent performance, including high sensitivity, low noise, and fast response. It integrates an autofocus lens with a 122° ultra-wide field of view and dual-axis optical image stabilization (OIS) system.

Specifications:

• Sensor : Model : IMX563
• Resolution : 4046 × 3344 (12MP)
• CMOS Sensor Size : 1/2.55 inch
• Pixel Size : 1.4 × 1.4 μm
• Lens : Field of View (FOV) : 122° (D) × 107.2° (H) × 90.1° (V)
• Aperture (F.No) : 2.2
• Effective Focal Length (EFL) : 2.17mm
• Depth of Field : 10cm ~ ∞
• Distortion : < 5.6%
• Focus Mode : Autofocus
• Optical Filter : Built-in 650nm optical filter
• Image Stabilization : OIS (±3° stabilization angle, >25 dB)
• VCM Driver IC : Autofocus : DW9800V
• OIS : AKM7323
• Frame Rate : 120fps at Full Resolution;
• 240fps at 4K/2K;
• 960fps at 1080p
• Output Format : MJPEG
• Interface : Type-C USB 2.0
• Operating Temperature : −20°C to 70°C

122° Ultra-Wide Field of View

A 122° diagonal field of view captures more of the surrounding scene

Autofocus Lens:

Built-in open-loop voice coil motor (VCM) enables autofocus and automatically adjusts the focus according to the shooting distance

Dual-Axis Optical Image Stabilization

±3° Stabilization Compensation for Stable Images Even in Motion

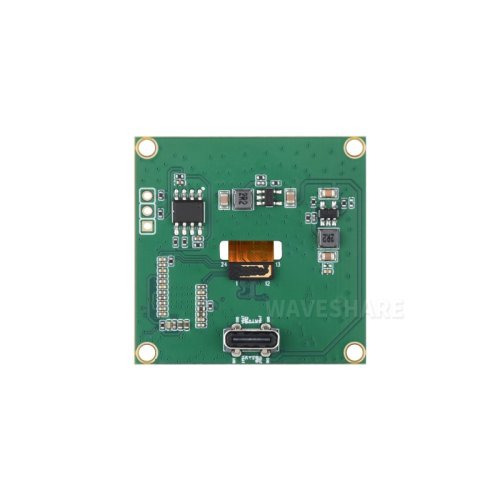

USB Type-C Interface

A USB 2.0 interface with a Type-C connector allows direct connection to computers, embedded boards, and other devices

Outline Dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

• 1 x IMX563 12MP OIS USB Camera (A)
• 1 x Type-A to Type-C Cable
