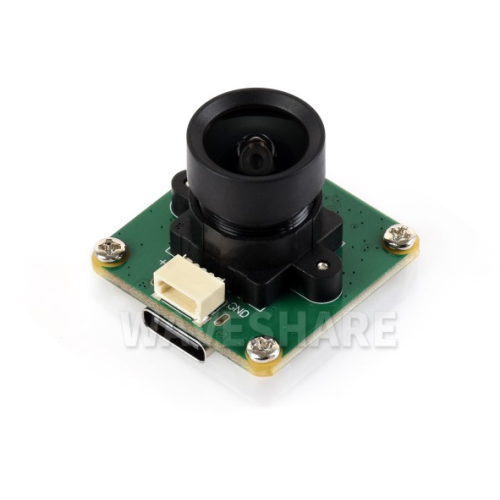

OV2735 USB camera

2MP | USB2.0 Type-C port | 96° FOV

Specifications:

• Pixels : 2MP
• Sensor : OV2735
• Interface : USB2.0 Type-C port / SH1.0 4PIN header
• Camera : Sensor size : 1/2.7 inch
• Aperture (F) : 2.7
• Focal length (EFL) : 2.88mm
• Field of view (FOV) : 96°
• Distortion : <-0.2%
• Focusing : Fixed-focus
• Image : Format support : MJPG, YUY2
• Static image resolution : 1920 × 1080
• Video recording : 30 FPS 1920 × 1080
• 30 FPS 1280 × 720
• Operating voltage : 5V ± 5%
• operating temperature : 0°C ~ 50°C
• Module size : 25.00 × 25.00 (mm)

2MP resolution

Supports 1080P 30 FPS output

Distortion-Free

Equipped with a distortion-free lens with a distortion rate of less than -0.2%, delivering undistorted imaging and more accurate reproduction of real-world scenes

Plug and Play, Easy Connection

Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using

Connecting with USB cable:

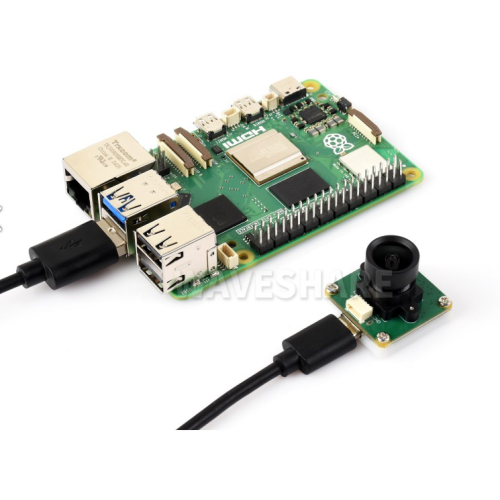

•  Connecting to Raspberry Pi 5

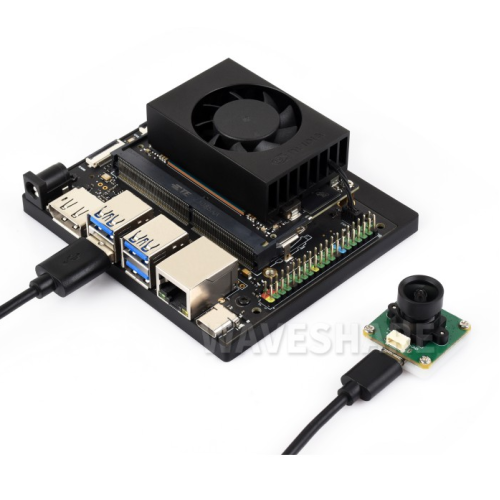

• Connecting to Jetson Orin kit
• Connecting to RDK X5 Development Board

for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are NOT included

Pinout Definition:

Onboard two types of connectors:

• Connecting via USB Type-C port
• Connecting via 1.0mm pitch 4PIN header

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

• 1 x OV2735 2MP USB Camera (A)
• 1 x SH1.0 4PIN dual plug cable
