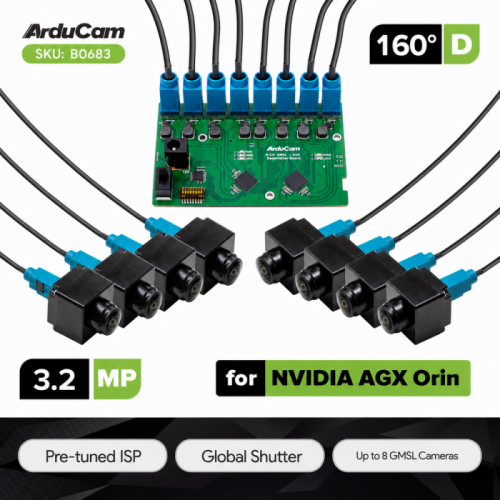

The 3.2MP IMX900 4-Channel GMSL2 Camera Kit is a professional-grade multi-camera solution designed for high-speed motion capture and synchronized perception on the NVIDIA Jetson AGX Orin. Featuring Sony’s Global Shutter IMX900 sensors, this kit eliminates motion artifacts and rolling shutter distortion, making it essential for fast-moving robotics and precision automation. Each module boasts a 125° Horizontal Field of View (HFOV) and a Pre-tuned ISP, ensuring high-fidelity, wide-angle imaging with low-latency transmission over coaxial cables up to 15 meters. Encased in IP65-rated weather-resistant housings, it is built to deliver reliability in industrial and semi-outdoor environments.

Applications:

High-Speed Autonomous Robotics: Perfect for drones and warehouse robots moving at high velocities.
Precision Industrial Automation: Quality inspection and gesture recognition without motion blur.
360° Surround View Systems: Leveraging the 125° HFOV for comprehensive situational awareness.
Logistics & Sorting: Accurate tracking of fast-moving items on conveyor belts.
AI Vision & Sensor Fusion: Multi-channel synchronized input for advanced AI workloads on Jetson Orin.

Features:

4hannel Synchronized Imaging: Supports up to 4 IMX900 cameras connected simultaneously to the Jetson AGX Orin, providing massive bandwidth for 360° perception and complex spatial computing.
Sony IMX900 Global Shutter Technology: Captures the entire frame at once, eliminating the distortion typical of rolling shutter sensors. Ideal for freezing high-speed motion in industrial and robotic applications.
3.2MP Resolution & 125° Wide HFOV: Delivers 3.2 megapixels of sharp detail paired with a 125-degree horizontal field of view, covering wider areas with fewer cameras.
GMSL2 Extension up to 15 m: Utilizes high-speed GMSL2 technology for low-latency, high-bandwidth data transmission via coaxial cables. (Kit includes eight 1 m cables by default.)
Pre-tuned Image Signal Processor (ISP): Each camera features a Pre-tuned hardware ISP, optimized for the Jetson platform to handle color balance, exposure, and noise reduction.
IP65 Weather-Resistant Design: The cameras are housed in IP65-rated enclosures, providing robust protection against dust and water splashes, suitable for industrial workshops and outdoor use.
Native Jetson AGX Orin Optimization: Specifically engineered for the Jetson AGX Orin architecture, ensuring seamless integration, high-frame-rate performance, and minimal CPU overhead.

Specifications:

Image Sensor

Sensor : Sony's IMX900
Resolution : 3.2 Megapixels
Chroma : Color
Shutter Type : Global Shutter
Optical Format : 1/3.1"
Pixel Size : 2.25 µm x 2.25 µm
Sensor Active Area : 2064(H)×1552(V)
Sensor Image Area : 5.760 mm x 4.608 mm (7.38 mm diagonal)
Resolution@fps : 2048x1552@30fps
ISP : Pre-tuned ISP

Lens

Focus Type : Fixed Focus

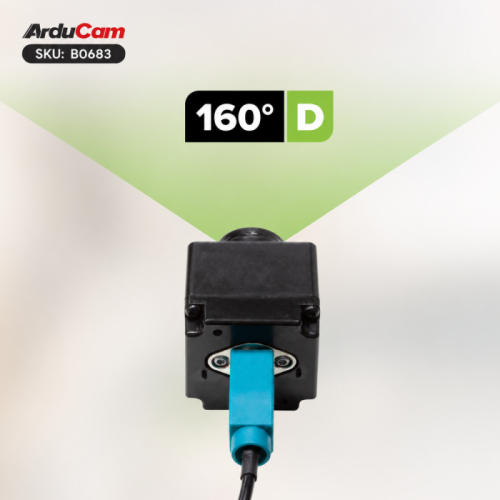

FOV : 160°(D)×125°(H)×92.5°(V)
Lens Mount : M12
F.NO : F2.0
E.F.L : 1.83mm
IR Sensitivity : Integral 650nm IR Filter, visible light only
Distrotion : <-20%
Weight : 4.8g

Functionality and Compatibility

Camera Interface : GMSL2
Connector : FAKRA Connecter
Output Format : UYVY
GMSL Serializer : MAX96717
GMSL Deserializer : MAX96724
Supported OS : JetPack6.2/L4T36.4.3 and later versions
Supported Platform : NVIDIA Jetson AGX Orin

Electrical and Mechanical

GMSL Cable Length : 1m by default, up to 15m (please contact [email protected] for 15m cable)
Overall Weight (Net) : 412g
Overall Size : Camera Module: 34 x 34 mm

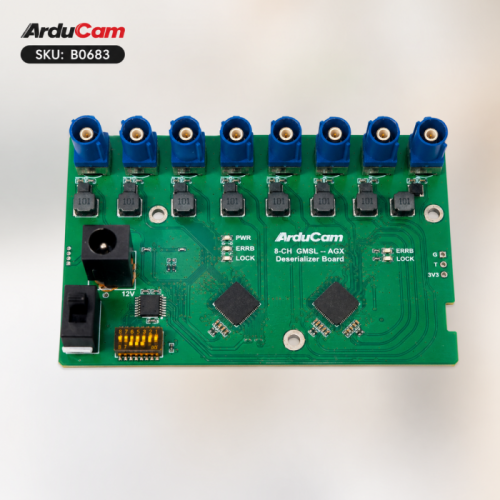

Deserializer Board : 93.2 x 58.3 mm
