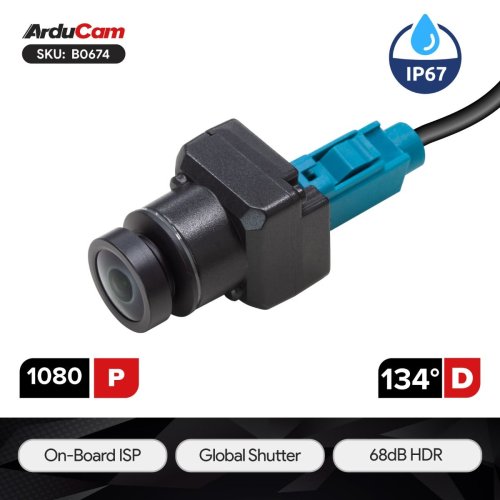

This 1080p GMSL2 camera module combines high-speed Global Shutter technology with a compact 23x23mm form factor. Designed for precision motion capture, it eliminates rolling shutter artifacts (jello effect), making it indispensable for high-speed industrial and robotic applications. Equipped with an on-board ISP and 68dB HDR capability, this camera delivers clear, balanced, and distortion-free 1080p video at 30fps, even in challenging lighting and high-vibration environments.

Applications:

• Sports Analytics
• Factory Automation
• Autonomous Mobile Robots (AMR)
• Logistics & Sorting
• Drones & Aerospace

Features:

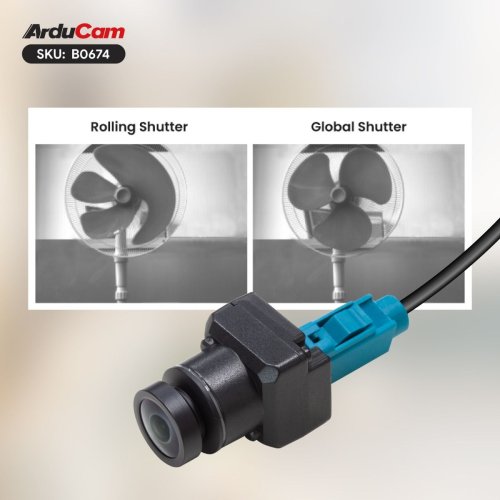

• Global Shutter Technology: Captures the entire frame simultaneously, ensuring zero motion blur and perfect geometry for fast-moving objects.

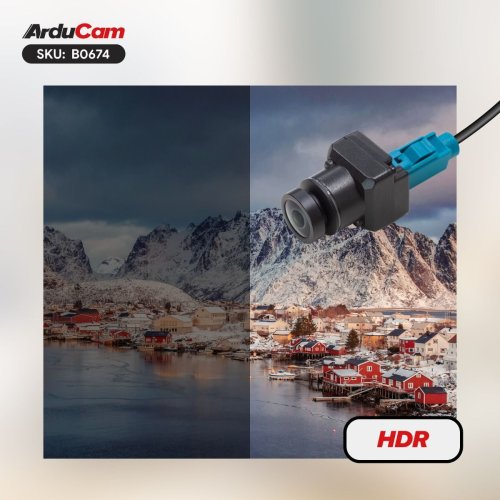

• HDR & Built-in ISP: Features 68dB High Dynamic Range and an integrated ISP to provide pre-processed, high-quality images with balanced exposure.
• GMSL2 Interface: Optimized for long-distance, low-latency video transmission over coaxial cables, ensuring reliable data integrity.
• Micro Form Factor: The 23x23mm miniature footprint allows for seamless integration into space-constrained robotic heads or drone gimbals.

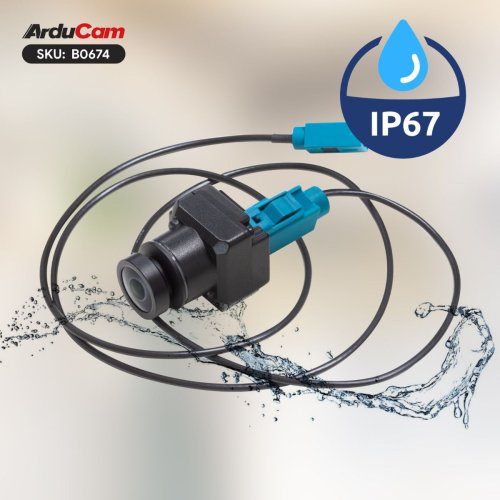

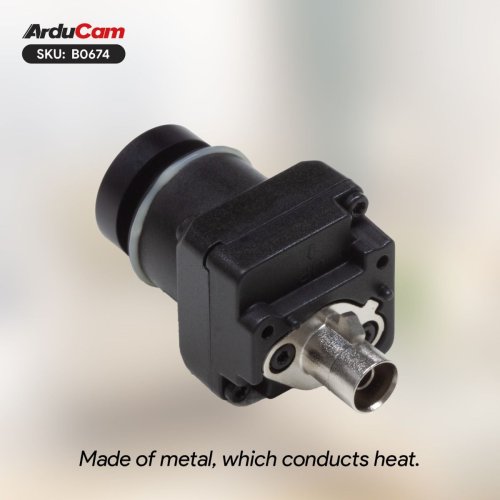

• IP67 Ruggedization: Built to withstand harsh conditions, offering full protection against dust ingress and water immersion.
• Customizable Optics: Wide selection of interchangeable lenses (30H to 195H) to perfectly match your specific field-of-view requirements.

Specifications:

• Resolution: 1080P (1920 × 1080)
• Chroma: Color
• Shutter Type: Global Shutter
• Sensor Format: 1/2.6"
• Pixel Size: 3.0 µm × 3.0 µm
• Sensor Active Area: 1920(H) × 1080(V)
• Sensor Image Area: 5.760 mm × 3.240 mm (6.61 mm diagonal)
• Frame Rate: 1920 × 1080 @ 30 fps
• ISP: On-board ISP
• Focus Type: Fixed Focus

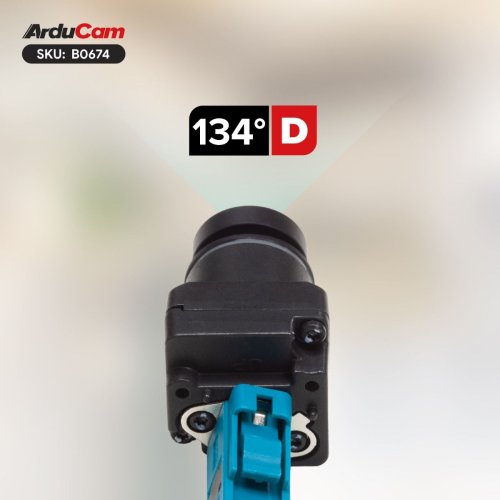

• Field of View (FOV): 134° (Diagonal), 120° (Horizontal), 64° (Vertical)
• Lens Mount: M12
• Aperture: F2.2
• Effective Focal Length (EFL): 3 mm
• IR Filter: Integral 650 nm IR Filter (Visible light only)
• Maximum Optical Distortion: -92.20%
• Lens Alignment: Active Alignment (AA)
• Camera Interface: GMSL2
• Connector: FAKRA Male Type Z
• Output Format: UYVY
• HDR: 68 dB
• Signal-to-Noise Ratio (SNR): 38 dB
• Serializer: MAX96717F
• GMSL Cable Length: 1 m (Supports up to 15 m)
• Operating Voltage: 8 V–16 V
• Maximum Power Consumption: 1.2 W
• Weight: 50 g

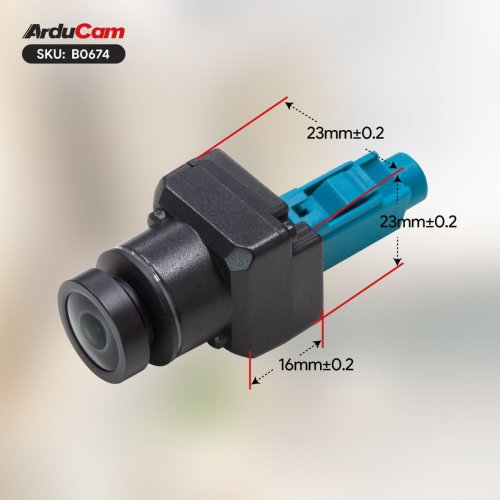

• Dimensions: 23 × 23 × 31.17 mm
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +95°C
• Ingress Protection: IP67
• Certifications: CE, RoHS

Note:

• This product does not come with a GMSL2 RX Deserializer Board by default. For specific GMSL RX platform adaptation or compatibility inquiries, please contact Arducam Sales in advance.

Documents:

• Datasheet-Camera Module
• Quick Start Guide

Package Includes:

• 1 x Arducam RR-GMSL2-1080P-GS-120H-IP67 Camera

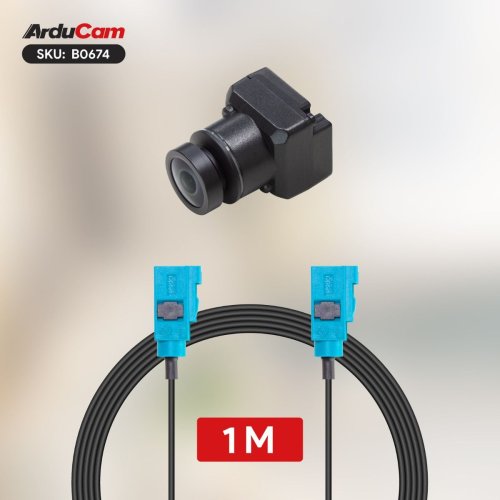

• 1 x 1m FAKRA Coax Cable
