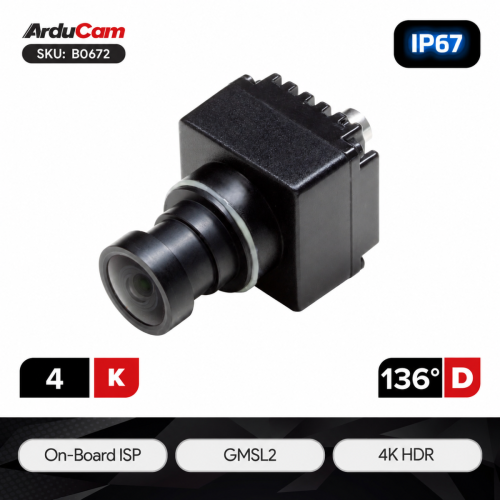

This 4K GMSL2 camera module is a high-performance imaging solution designed for long-distance, low-latency applications in challenging environments. Featuring an on-board Image Signal Processing (ISP) and HDR support, the camera delivers pre-processed, high-dynamic-range 8MP video even in high-contrast lighting. Its IP67-rated rugged enclosure ensures reliable operation against dust and water, making it ideal for automotive, robotics, and industrial vision systems.
Applications:
- ADAS & Autonomous Driving
- AMR & Delivery Robots
- Industrial Inspection
- Smart Agriculture
- Outdoor Surveillanc
Features:

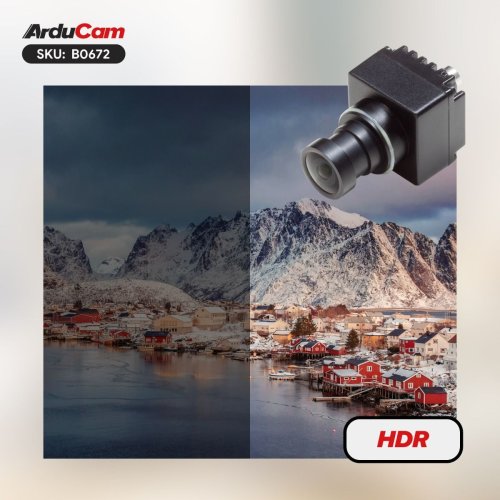

- 4K Ultra HD & HDR: 8MP resolution combined with High Dynamic Range (HDR) for superior detail in both highlight and shadow areas.
- Advanced GMSL2 Interface: Supports high-bandwidth, low-latency video transmission over coax cables up to 15 meters.
- On-Board ISP: Integrated hardware ISP handles de-Bayering, noise reduction, and color correction for ready-to-use output.

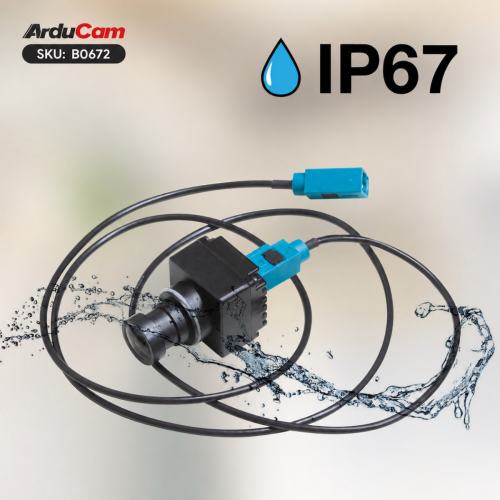

- IP67 Waterproof & Dustproof: Industrial-grade sealing protects the camera from water immersion and dust ingress.
- Configurable Optics: Available with multiple lens options (30°H / 60°H / Default 120°H) to suit varied field-of-view requirements.
Specifications:
- Resolution: 8.3MP (4K)
- Chroma: Color
- Shutter Type: Rolling Shutter
- Optical Format: 1/1.73"
- Pixel Size: 2.1 µm × 2.1 µm
- Sensor Active Area: 3840(H) × 2160(V)
- Sensor Image Area: 8.064 mm × 4.536 mm (9.252 mm diagonal)
- Resolution @ FPS: 3840 × 2160 @ 30fps
- ISP: On-Board ISP
- Focus Type: Fixed Focus

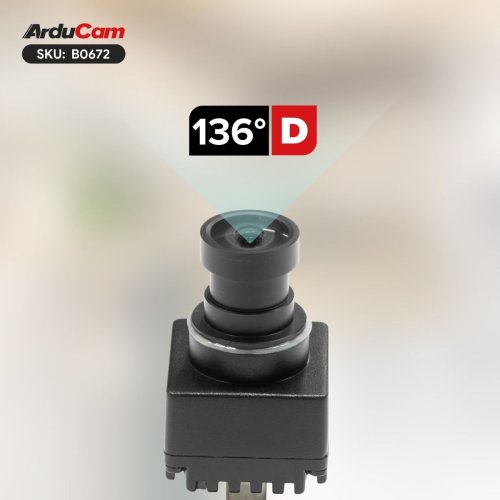

- Field of View (FOV): 136° (D) × 120° (H) × 65.5° (V)
- Lens Mount: M12 Mount
- F.NO: F1.6
- E.F.L: 4.01 mm
- IR Sensitivity: Integral 650nm IR Filter (Visible Light Only)
- Max Optical Distortion: -58.1%
- Alignment Method: Active Alignment (AA)
- Camera Interface: GMSL2
- Connector: FAKRA Male Type Z
- Output Format: UYVY
- HDR Support: Yes
- LFM Support: Yes
- Serializer: MAX9295A
- GMSL Cable Length: 1 m (Default), Up to 15 m
- Operating Voltage: 8V–16V
- Power Consumption: Max. 3W
- Weight: 60 g

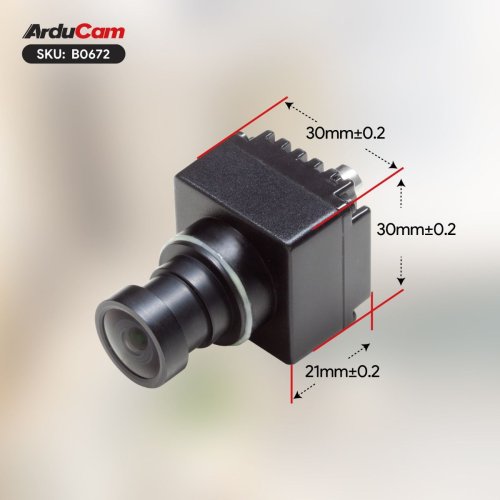

- Dimensions: 30 × 30 × 41.5 mm
- Storage Temperature: -40°C to +95°C
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP67
- Certifications: CE, RoHS
Note
- This product does not come with a GMSL2 RX Deserializer Board by default. For specific GMSL RX platform adaptation or compatibility inquiries, please contact Arducam Sales in advance.
Documentations:

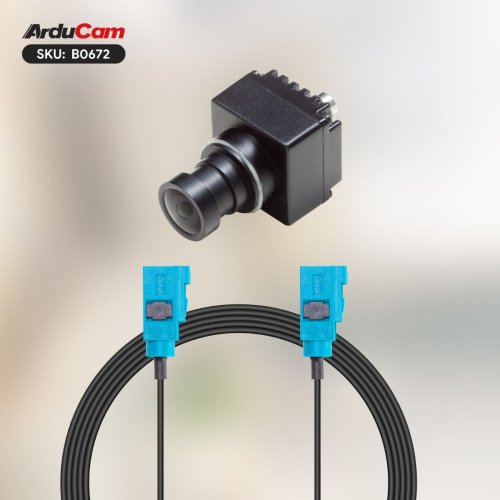

Package Includes:
- 1 x Arducam RR-GMSL2-4K-RS-120H-IP67 Camera

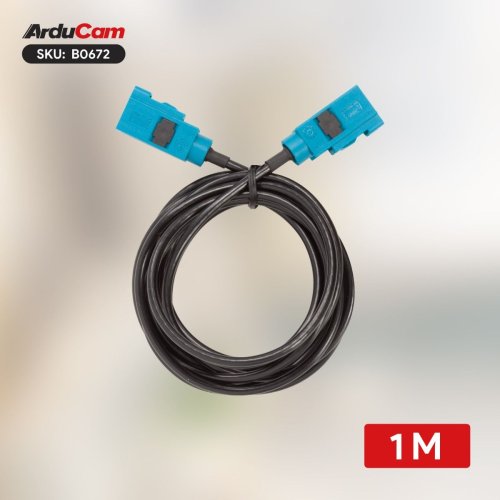

- 1 x 1m FAKRA Coax Cable
