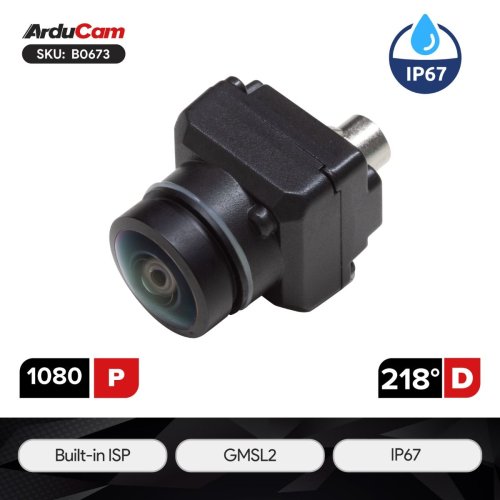

This ultra-compact 1080p GMSL2 camera module is engineered for high-performance imaging in space-constrained and harsh environments. Measuring only 23x23mm, it integrates a built-in ISP and a high-sensitivity sensor that excels in low-light conditions. With its IP67-rated housing and GMSL2 interface, this camera provides a robust, low-latency video solution for long-distance transmission, making it perfect for surround-view systems and industrial robotics.

Applications:

• 360° Surround View Systems
• AMR & Delivery Robots
• UAVs & Drones
• Automotive Rear-View & Parking Assist
• Industrial Endoscopy & Inspection

Features:

• High-Sensitivity Low-Light Imaging: Optimized sensor performance ensures clear, low-noise 1080p video at 30fps in dimly lit environments.
• Ultra-Compact Form Factor: The 23x23mm footprint allows for flexible installation in the tightest mounting positions.
• Built-in ISP & GMSL2: Features an integrated ISP for automated image enhancement and a GMSL2 interface for reliable, long-reach connectivity.
• Industrial-Grade Protection: Fully sealed IP67 enclosure provides complete protection against water immersion and dust.
• Versatile Lens Ecosystem: Offers multiple FOV options ranging from narrow 30°H to ultra-wide 195°H to meet diverse application needs.

Specification:

• Resolution: 1080P
• Chroma: Color
• Shutter Type: Rolling Shutter
• Optical Format: 1/2.8"
• Pixel Size: 2.9 µm × 2.9 µm
• Sensor Active Area: 1920(H) × 1080(V)
• Sensor Image Area: 5.568 mm × 3.132 mm (6.479 mm diagonal)
• Resolution@fps: 1920 × 1080 @ 30fps
• ISP: Built-in ISP
• Focus Type: Fixed Focus

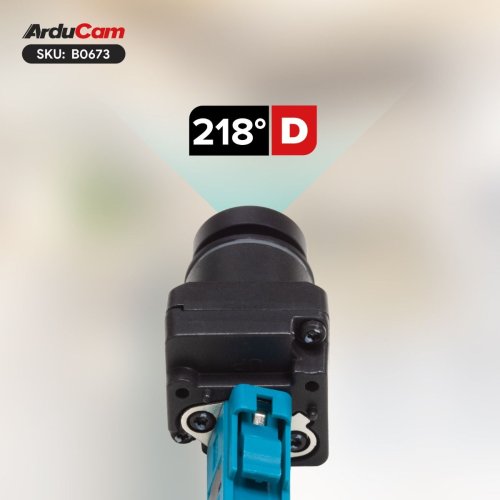

• FOV: 218° (D) × 195° (H) × 154° (V)
• Lens Mount: M12 Mount
• IR Sensitivity: Integral 650nm IR Filter, visible light only
• Alignment Method: Active Alignment (AA)
• Camera Interface: GMSL2

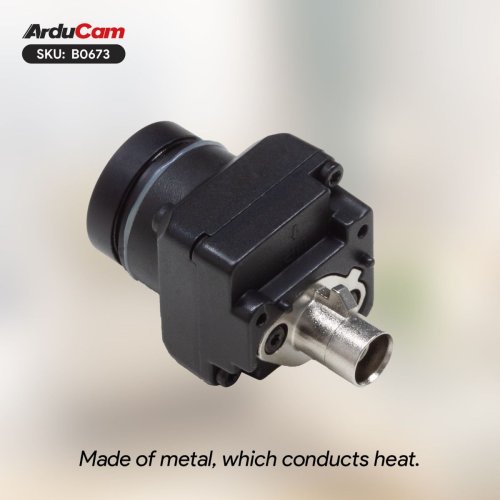

• Connector: FAKRA male type Z
• Output Format: UYVY
• Serializer: MAX96717F
• GMSL Cable Length: 1m by default, up to 15m
• Operating Voltage: 7V~16V
• Power Consumption: Max: 1W
• Overall Weight (Net): 50g

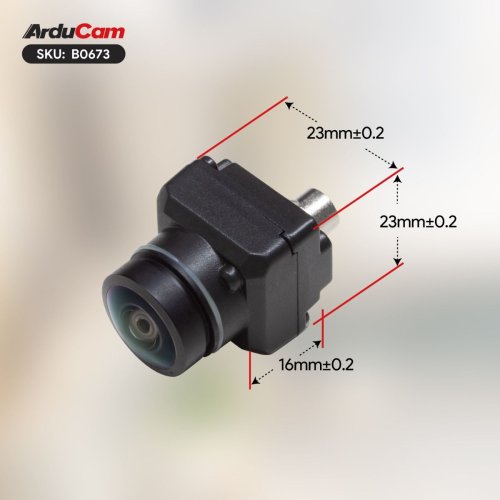

• Overall Size: L23 × W23 × H31.17
• Temperature Range (Storage): -22°F–203°F (-30°C to +95°C)
• Temperature Range (Operating): -22°F–185°F (-30°C to +85°C)

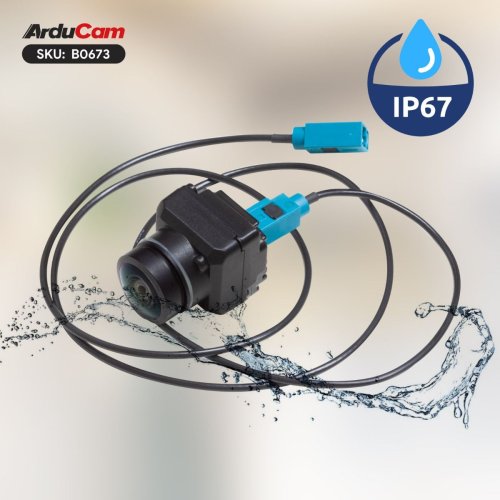

• Ingress Protection: IP67
• Certification: CE & RoHS

Note:

• This product does not come with a GMSL2 RX Deserializer Board by default. For specific GMSL RX platform adaptation or compatibility inquiries, please contact Arducam Sales in advance.

Documentation:

• Datasheet-Camera Module
• Quick Start Guide

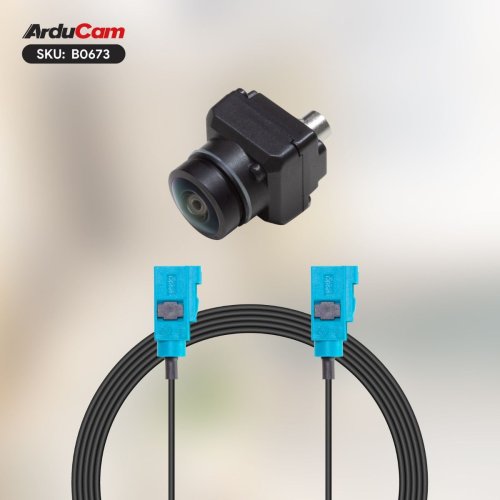

Package Includes:

• 1 x Arducam RR-GMSL2-1080P-RS-195H-IP67 Camera

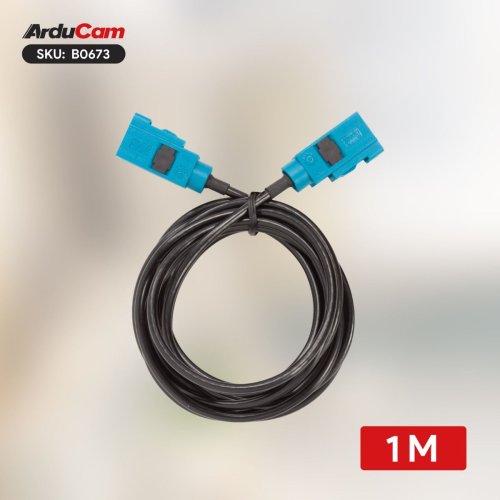

• 1 x 1m FAKRA Coax Cable
