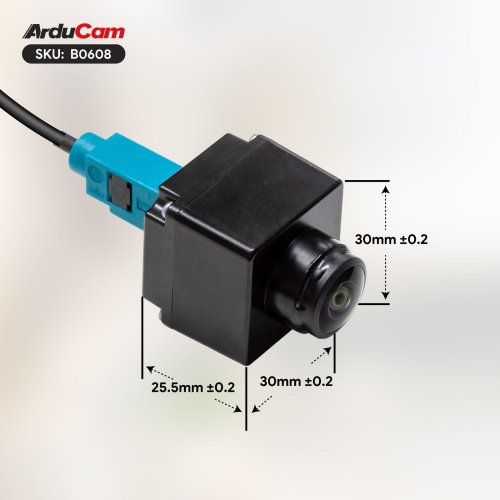

The 3MP ISX031 8-Channel GMSL2 Camera Kit brings together Sony’s high-performance ISX031 sensors and Arducam’s advanced GMSL2 extension technology to deliver a robust, long-range multi-camera solution for NVIDIA Jetson AGX Orin. Each camera module offers 120 dB HDR, LED Flicker Mitigation, and a built-in ISP, producing high-quality images even under extreme lighting conditions. With IP67 waterproof housings and coaxial extension support up to 15 m, this kit is engineered for outdoor robotics, autonomous vehicles, and industrial vision systems that demand reliability, clarity, and scalability.
- [8-Channel Camera Kit] Synchronized multi-camera setup for Jetson AGX Orin.
- [Sony ISX031 Sensor] 3 MP with 120 dB HDR and LED Flicker Mitigation.
- [GMSL2 Extension up to 15 m] High-speed, low-latency transmission over coaxial cable.
- [IP67-Rated Cameras] Fully sealed for outdoor and industrial environments.
- [Built-in ISP] Real-time hardware image processing for stable, vivid output.
Features:

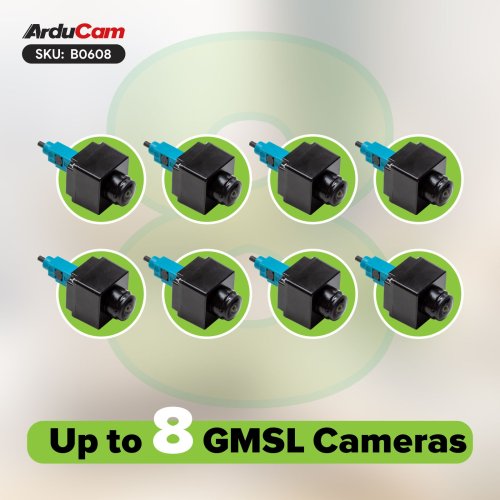

- 8-Channel Synchronized Imaging Supports up to eight ISX031 cameras connected simultaneously to Jetson AGX Orin, ideal for multi-view perception and 360° awareness applications.
- GMSL2 Extension up to 15 m High-speed GMSL2 interface enables reliable, low-latency image transmission over a single coaxial cable — up to 15 meters. (Default kit includes eight 1 m coaxial cables.)
- 120 dB High Dynamic Range (HDR) Captures precise details in both bright and dark regions, ensuring superior visibility in complex lighting environments.
- Built-in Image Signal Processor (ISP) Per-camera hardware ISP handles color tuning, exposure control, and tone mapping, ensuring consistent image quality across all eight channels.
- LED Flicker Mitigation (LFM) Minimizes flicker artifacts under LED or strobe lighting, making it ideal for traffic, warehouse, and smart-city applications.
- IP67 Waterproof and Dustproof Design Each camera module is fully sealed to IP67 standards, offering dependable protection against dust, moisture, and weather exposure.
- Designed for NVIDIA Jetson AGX Orin Native compatibility with Jetson AGX Orin for high-bandwidth multi-camera input, optimized for AI and autonomous vision workloads.
Specifications:
Applications:
- Autonomous vehicles and mobile robotics
- Multi-camera perception and sensor fusion
- Smart traffic and outdoor surveillance
- Industrial and warehouse automation
- AI vision systems on Jetson AGX Orin
Documentation:

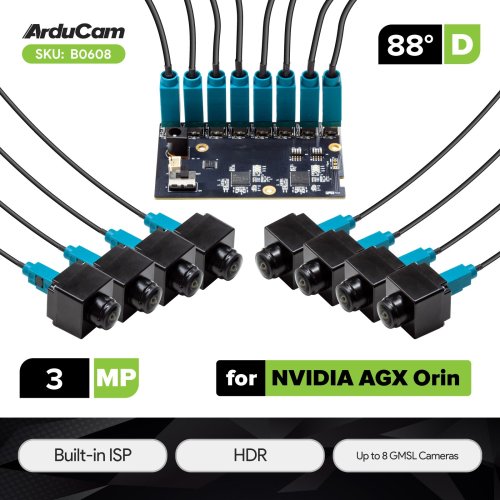

Package Includes:
- 8 x 3MP ISX031 HDR Camera Module
- 8 x 1m Fakra Z Female to Female RF Coaxial Cable

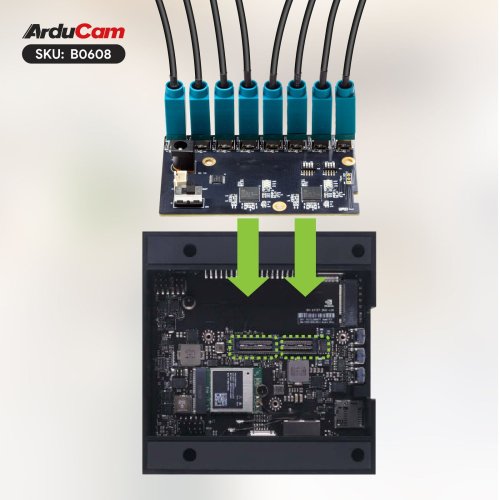

- 1 x GMSL2 Rx Deserializer board
- 1 x Power Supply
- 1 x Screw Pack
Arducam B0608 3MP ISX031 8-Channel GMSL2 Camera Kit for NVIDIA Jetson AGX Orin – 120 dB HDR, Built-in ISP, LED Flicker Mitigation, IP67 Waterproof, up to 15 m Cable Extension
- Brand: ArduCAM
- Product Code: NR-ArdC-3MP-ISX031
- Reward Points: 3441
- Availability: In Stock
- रo 359,099.00
-
रo 301,643.00
- Price in reward points: 344136
