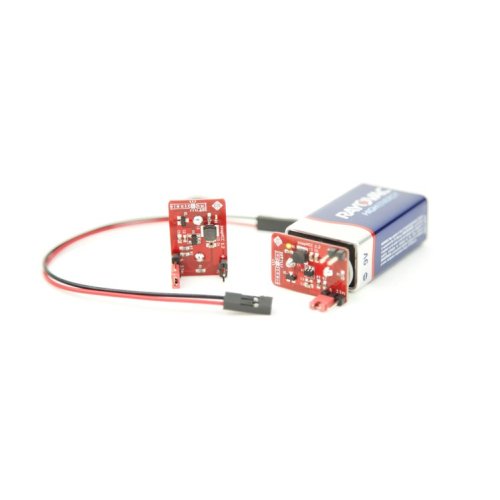

Many circuits require a regulated 3.3 or 5 volt power supply. The 9V battery is an easily available power supply option. A common way to power circuits using a 9V battery is to use a Linear regulator IC circuit to drop the voltage down. snapVCC eliminates this additional circuit by putting the regulator right on top of the 9V battery. Also, since snapVCC uses a buck converter, it’s more efficient than using a linear regulator.
Features:
- snapVCC uses a buck converter for efficient regulation of battery voltage. snapVCC has an LED power indicator, reverse polarity protection, and you can switch between 3.3V and 5V by just switching a jumper.
Specifications:
- Texas Instruments TPS560200 buck converter with 500 mA output current
- 3.3 V / 5 V output, switchable via jumper
- P-MOSFET for reverse polarity protection
- Power indicator low power LED
- Tiny form factor, sits on top of a 9V battery
- Power headers are standard .1" pitch

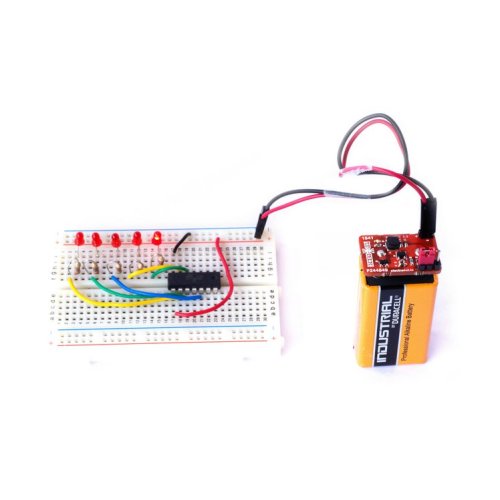

- Comes with a jumper cable for plugging into a breadboard
Warranty:
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x snapVCC

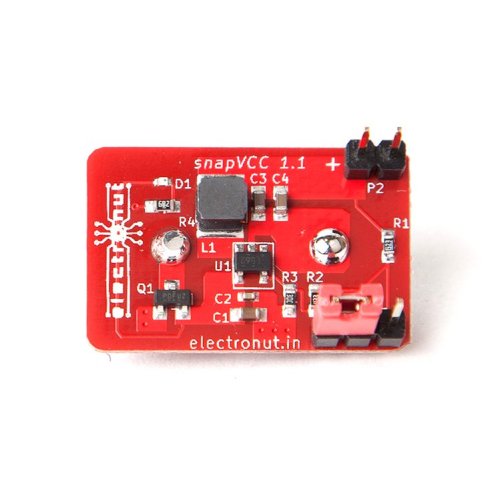

snapVCC
- Brand: Crowd Supply
- Product Code:CS-snapVCC
- Reward Points:21
- Availability:In Stock
-
रo 2,439.06
- Ex Tax:रo 2,067.00
- Price in reward points:2067
-
- 7 or more रo 2,429.62
- 13 or more रo 2,246.72
- 33 or more रo 2,114.56
- 65 or more रo 2,060.28
