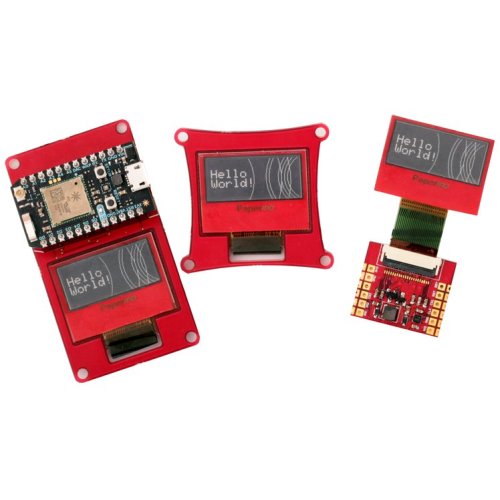

Modern ePaper displays (EPDs) combine cutting edge technology with the known, century-old experience of paper. They can display text and graphics without any power, which makes them ideal for ultra-low power and battery driven projects. However, integrating an ePaper display into your project can be complex due to the need for several high voltages and waveforms. Paperino simplifies driving ePaper displays with clean, simple, and short script examples.
Features & Specifications:
- Paperino supports the UC8156-based ePaper display from Plasticlogic and Accelerometer BMA250E from Bosch. Communication for both devices is based on SPI/3.3 V. The Paperino shield is plug-and-play compatible with Photon, Electron and Bluz. The Paperino breakout board can be used for manually wiring your favourite, Arduino-compatible microcontroller with 3.3 V and >4kb of free RAM.
- Resolution: 148 x 70 px
- Pixel density: 150 ppi
- Grey levels: 4
- Weight: 1.2 g
- Thickness: 500 µm
- Power consumption: 4.5 mA (mean current for typical image update)
- Operating conditions: 0°C .. 40°C
- Storage conditions: -25°C .. 50°C
Package Includes:
- 1 x Paperino
Paperino
- Brand: Crowd Supply
- Product Code:CS-Paperino
- Reward Points:28
- Availability:Discontinued
-
रo 3,392.50
- Ex Tax:रo 2,875.00
- Price in reward points:2875
