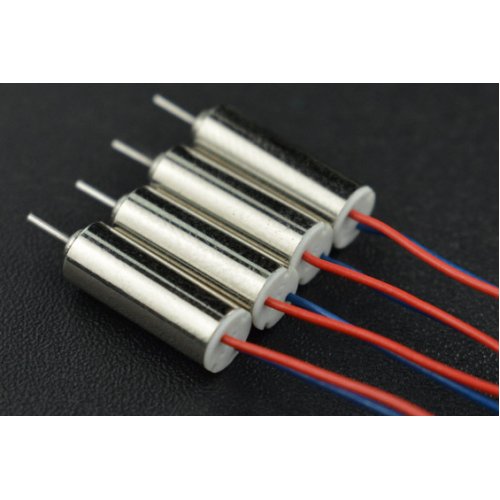

These coreless motors are just right for guys who love to DIY drone models! Designed to be high performance and easy to wire, the motor can work properly at only 3.7V voltage. Combining with propellers, the motors are good choices for DIY projects like remote control drones.
Specifications:
- Rated Voltage: 3.7V
- Size - 6mmx10mm:
- Rated Current: 40mA
- Speed: 55000rpm
- Motor Length: 10mm/0.39inch
- Motor Diameter: 6mm/0.24inch
- Shaft Diameter: 0.8mm/0.031inch
- Shaft Length: 4mm/0.16inch
- Size - 6mmx12mm:
- Rated Current: 45mA
- Speed: 50000rpm
- Motor Length: 12mm/0.47inch
- Motor Diameter: 6mm/0.24inch
- Shaft Diameter: 0.8mm/0.031inch
- Shaft Length: 4mm/0.16inch
- Size - 6mmx14mm:
- Rated Current: 40mA
- Speed: 55000rpm
- Motor Length: 14mm/0.55inch
- Motor Diameter: 6mm/0.24inch
- Shaft Diameter: 0.8mm/0.031inch
- Shaft Length: 4.2mm/0.17inch
- Size - 7mmx16mm:
- Rated Current: 70mA
- Speed: 50000rpm
- Motor Length: 16mm/0.63inch
- Motor Diameter: 7mm/0.28inch
- Shaft Diameter: 0.8mm/0.031inch
- Shaft Length: 5mm/0.20inch
- Size - 8mmx16mm:
- Rated Current: 170mA
- Speed: 50000rpm
- Motor Length: 16mm/0.63inch
- Motor Diameter: 8mm/0.31inch
- Shaft Diameter: 0.8mm/0.031inch
- Shaft Length: 5mm/0.20inch
- Size - 8.5mmx20mm:
- Rated Current: 700mA
- Speed: 46000rpm
- Motor Length: 20mm/0.79inch
- Motor Diameter: 8.5mm/0.33inch
- Shaft Diameter: 1mm/0.039inch
- Shaft Length: 5mm/0.20inch
- Size - 4mmx12mm:
- Rated Current: 40mA
- Speed: 60000rpm
- Motor Length: 12mm/0.47inch
- Motor Diameter: 4mm/0.16inch
- Shaft Diameter: 0.7mm/0.028inch
- Shaft Length: 4mm/0.16inch
Warranty: 90 days
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x Coreless Micro Motor
| Motor Specifications | |
| Speed (RPM) | 4mmx12mm-60000rpm / 6mmx10mm-55000rpm / 6mmx12mm-50000rpm / 6mmx14mm-55000rpm / 7mmx16mm-50000rpm / 8mmx16mm-50000rpm / 8.5mmx20mm-46000rpm |
| Shaft Diameter | 4mmx12mm-0.7mm / 6mmx10mm-0.8mm / 6mmx12mm-0.8mm / 6mmx14mm-0.8mm / 7mmx16mm-0.8mm / 8mmx16mm-0.8mm / 8.5mmx20mm-1mm |
| Electrical Specifications | |
| Operating Voltage | Rated Voltage: 3.7V |
| Operating Current | Rated Current: 4mmx12mm / 6mmx10mm / 6mmx14mm-40mA / 6mmx12mm-45mA / 7mmx16mm-70mA / 8mmx16mm-170mA / 8.5mmx20mm-700mA |
| Physical Attributes | |
| Size | 4mmx12mm / 6mmx10mm / 6mmx12mm / 6mmx14mm / 7mmx16mm / 8mmx16mm / 8.5mmx20mm |
| Additional Information | |
| Warranty | 90 days |
