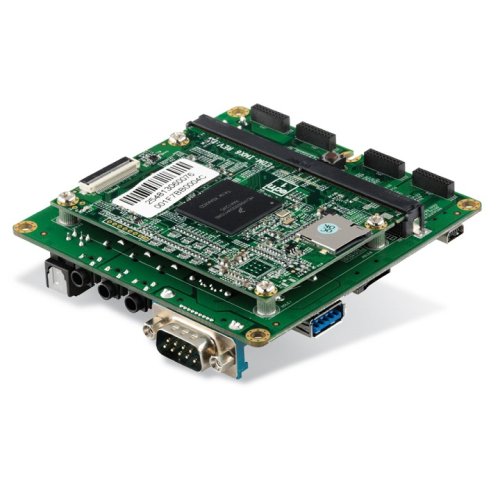

Wandboard Dual NXP i.MX6 Cortex®-A9
Development Board

Wandboard Dual NXP i.MX6 Cortex®-A9 Development Board is an ultra low power complete computer with high performance multimedia capabilities based around the NXP i.MX6 DualLite Cortex-A9 dual core processor. The Wandboard Dual comes with a dazzling 1Ghz processor, HDMI display interface and gigabit ethernet. It also features 1GB of memory as well as onboard Wi-Fi and Bluetooth. The board was created to allow flexibility to design a product beyond the initial stage, offering a System-on-Module that works with an easy-to-design, few layer baseboard that anyone can operate with only beginning engineering knowledge.

Specifications

• Product: Development Boards
• Tool Is For Evaluation Of: Freescale i.MX6 Duallite at 1Ghz - MCIMX6U5DVM10AB
• Core: ARM Cortex A9
• Brand: Wandboard
• Description/Function: System on Module development platform based on Freescale i.MX 6 Series of applications processors, EDM Form Factor - 1 GB DDR3
• Dimensions: 95 mm x 95 mm
• Interface Type: Ethernet, HDMI, I2C, micro SD, Optical S/PDIF, SPI, UART, USB
• Operating Supply Voltage: 5 V at 2 A

Features

• Processor: NXP i.MX6 DualLite
• Core: Cortex-A9 Dual core
• Memory: 1GB DDR3
• Audio
• Optical S/PDIF
• HDMI
• Camera interface
• 2 micro SD cardslots
• Serial port
• Expansion header
• USB, USB OTG
• Gigabit LAN
• Wi-Fi (802.11n)
• Bluetooth
