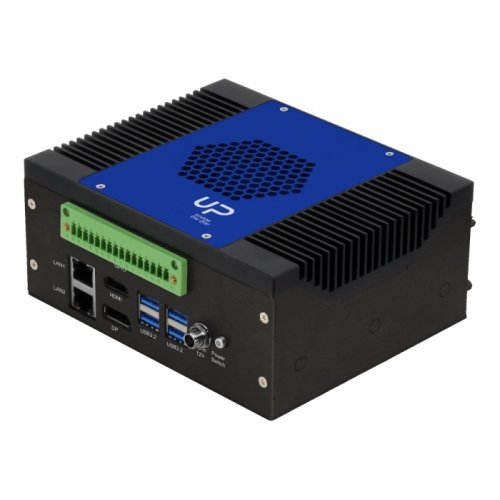

UP Xtreme i11 Edge Compute Enabling Kit, powered by the 11th Gen Intel Core processors with Iris Xe graphics. It delivers greater performance and better efficiency for both general purpose applications and Artificial Intelligence (AI) on the edge.
Specifications:
| UP board version | UP Xtreme i11 Edge |
| SoC |
|
| Processor TDP | 15W - 28W depends on CPU |
| VPU | Optional via M.2 2280 |
| Graphics |
|
| FPGA | Intel FPGA Altera MAX 5 |
| System memory | 2x DDR4 2 channel SO-DIMM VERTICAL MAX 64GB @ 3200MT/s |
| Storage capacity | via 1x SATA 3.0 CONN with POWER CONN / 1xM.2 2280 M key ( combo 2x PCIE[x1]) NVME |
| BIOS | UEFI |
| Compatible operating system |
|
| Power |
|
| Power supply type | AT/ATX |
| Power consumption (typical) | 32W |
| Mounting | VESA mounting plate included |
| Operating temperature target | 0°C-60°C |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Operating humidity | 0% ~ 90% relative humidity, non-condensing |
| Certification | CE/FCC Class A, RoHS compliant |
| Inference toolkit | Intel Distribution of OpenVINO toolkit 2021 R1 |
| Supported frameworks | TensorFlow, Caffe |
| RTC | YES |
| Cooling | Active heatsink |
| Longevity | 2035 |
Display
|
HDMI
|
1 (HDMI 2.0b) |
|
DP
|
1x DP + 1x DP 1.4 (via USB Type C) |
| MIPI | DSI/ eDP 1 x eDP (4K@60hz) |
I/O
| Audio | HDMI Audio x 1, DP Audio x 1, Soundwire Codec for Audio Out/Mic In/, I2S |
| USB |
4 x USB 3.2 (Type A)
1 x USB 4.0 (Type C)
|
| UART | 1 x HSUART (pin header) |
| Serial port | Fintek F81801,2x RS232/422/485 |
| HDD interface | 1 x SATA 3.0 |
| Expansion Slot |
1x M.2 2280 M key (support NVME SSD)
1x M.2 2230 E key
1x M.2 3052 B key
1x PCI-E[X4]
|
| SIM slot | 1 |
| Others |
Phoenix: 3V3, 5V, GND, I2C, GPIO x8, PWM x2
Infineon TPM SLB9670 on board
|
Connectivity
| Ethernet | 1 x 1GbLAN (i219), 1x 2.5Gb LAN (i225), |
| WiFi | Optional (via M.2 2230) -- Intel AC9260 card |
| Bluetooth | Optional (via M.2 2230) -- Intel AC9260 card |
| LTE/4G/ 5G | Optional (via M.2 3052) |
Package Includes:
- 1 x UP Xtreme i11 Edge Compute Enabling Kit
- 1 x 12V Power Supply
- 1x US power cord + 1x EU power cord
