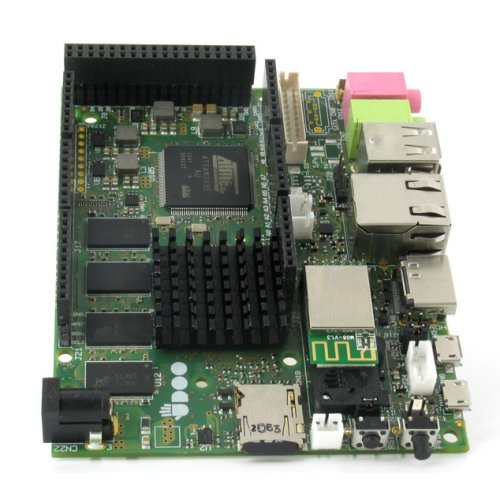

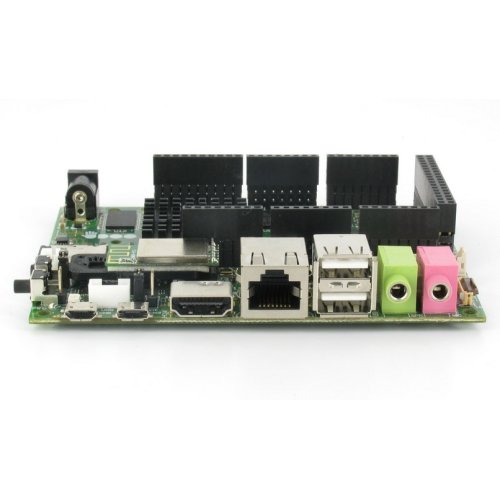

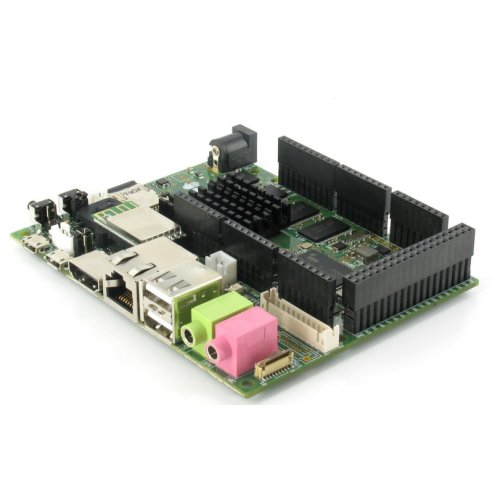

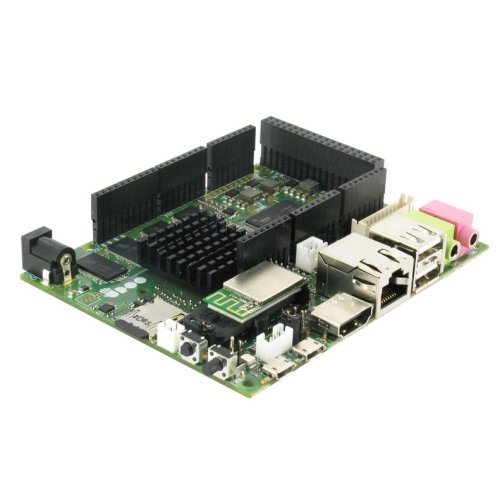

A mini PC that could run either Android or Linux, with an Arduino-compatible board embedded..

UDOO Dual is a very powerful board based on dual core ARM cortex-A9 CPU with great performance both on Android and Linux OS, and a dedicated ARM processor for the GPIO. These are the main specifications:

  • CPU Freescale i.MX 6 ARM Cortex-A9 Dual core 1GHz
  • GPU Vivante GC 880 + Vivante GC 320
  • Integrated accelerators for 2D, OpenGL® ES2.0 3D and OpenVG™
  • Atmel SAM3X8E ARM Cortex-M3 CPU (same as Arduino Due)
  • RAM DDR3 1GB
  • 76 fully available GPIO: 62 digital + 14 digital/analog
  • Arduino-compatible R3 1.0 pinout
  • HDMI and LVDS + Touch
  • 2 Micro USB (1 OTG type a+b)
  • 2 USB type A (x2) and 1 USB connector (requires a specific wire)
  • Analog Audio and Mic
  • CSI Camera Connection
  • on board Micro SD card reader (boot device)
  • Power Supply (6-15V) and External Battery connector
  • Ethernet RJ45 (10/100/1000 MBit)
  • WiFi Module

For more information please visit the official UDOO page here.



Write a review

Please login or register to review

UDOO DUAL: Android Linux Arduino in a tiny single-board computer

  • Product Code:UDOO-DUAL
  • Reward Points:139
  • Availability:Out Of Stock
  • रo 13,911.00

  • Ex Tax:रo 13,911.00
  • Price in reward points:13911

  • 2 or more रo 13,298.00
  • 5 or more रo 13,243.00
  • 10 or more रo 13,187.00
