| LCD size | 7 inch(Diagonal) |
| Touch Screen Controller | FT5x06 |
| LCD Type | TFT |
| Resolution | 800 × 3 (RGB) × 480 |
| Backlight | LED |
| Interface |
Digital |
Pin Assignment:
| PIN NO | Symbol | I/O | Function |
| 1 | VLED- | Power | Power for LED backlight cathode |
| 2 | VLED+ | Power | Power for LED backlight anode |
| 3 | GND | Power | Power ground |
| 4 | VDD | Power | Power voltage |
| 5 | R0 | Input | Red data (LSB) |
| 6 | R1 | Input | Red data |
| 7 | R2 | Input | Red data |
| 8 | R3 | Input | Red data |
| 9 | R4 | Input | Red data |
| 10 | R5 | Input | Red data |
| 11 | R6 | Input | Red data |
| 12 | R7 | Input | Red data (MSB) |
| 13 | G0 | Input | Green data (LSB) |
| 14 | G1 | Input | Green data |
| 15 | G2 | Input | Green data |
| 16 | G3 | Input | Green data |
| 17 | G4 | Input | Green data |
| 18 | G5 | Input | Green data |
| 19 | G6 | Input | Green data |
| 20 | G7 | Input | Green data (MSB) |
| 21 | B0 | Input | Blue data (LSB) |
| 22 | B1 | Input | Blue data |
| 23 | B2 | Input | Blue data |
| 24 | B3 | Input | Blue data |
| 25 | B4 | Input | Blue data |
| 26 | B5 | Input | Blue data |
| 27 | B6 | Input | Blue data |
| 28 | B7 | Input | Blue data (MSB) |
| 29 | GND | Power | Power ground |
| 30 | PCLK | Input | Pixel clock |
| 31 | DISP | Input | Display on/off |
| 32 | HSYNC | Input | Horizontal Sync Signal |
| 33 | VSYNC | Input | Vertical Sync Signal |
| 34 | DE | Input | Data Enable |
| 35 | NC | No Connector | |
| 36 | GND | Power | Power ground |
| 37 | XR | Input/Output | CPT I2C SDA |
| 38 | YD | Input/Output | CPT I2C SCL |
| 39 | XL | Input/Output | CTP RST |
| 40 | YU | Input |
CTP INT |
- 1x Display Panel
- 1x 40 pin connect cable

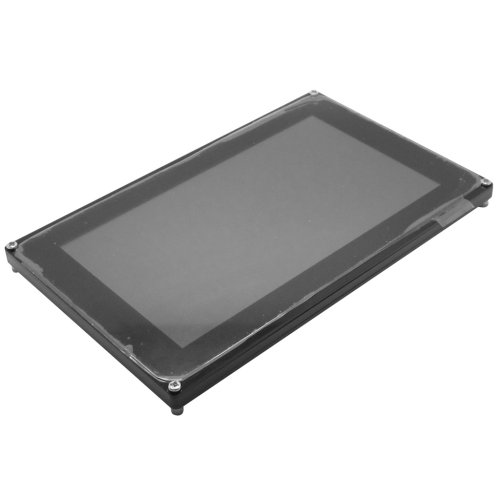

LCD TFT Display with 7 inch 800x480 Capacitive Touch Panel
- Product Code:PRC-LCD-Marsboard-7-inch-Touch-TFT
- Reward Points:33
- Availability:Out Of Stock
-
रo 4,702.30
- Ex Tax:रo 3,985.00
- Price in reward points:3250
