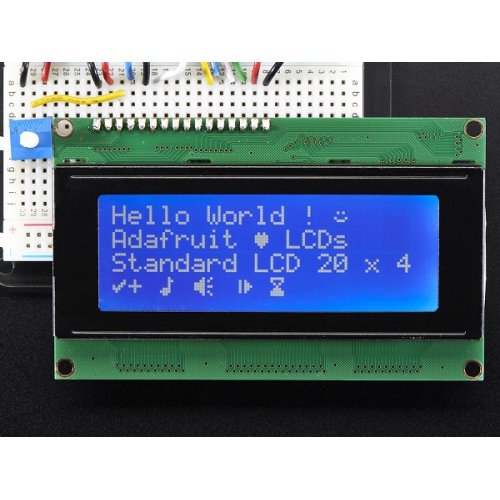

Standard HD44780 LCDs are useful for creating standalone projects.

  • 20 characters wide, 4 rows
  • White text on blue background
  • Connection port is 0.1" pitch, single row for easy breadboarding and wiring
  • Single LED backlight with a resistor included, you can power it directly from 5V. If it's too bright for you, it can be dimmed easily with a resistor or PWM and uses much less power than LCD with EL (electroluminescent) backlights
  • Can be fully controlled with only 6 digital lines!
  • Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
  • Up to 8 extra characters can be created for custom glyphs or 'foreign' language support (like special accents)

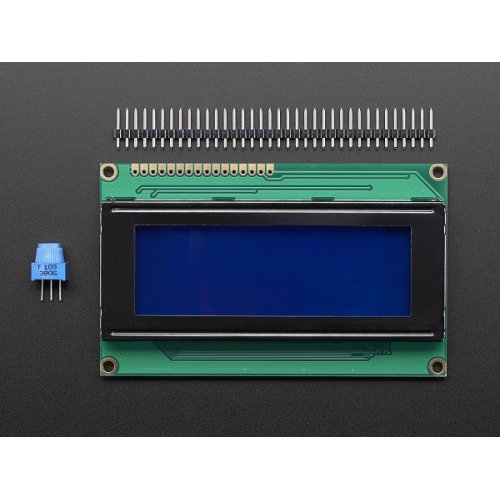

  • Comes with necessary contrast potentiometer and strip of header

We have a datasheet that has dimensions and pin-locations and then a HD44780 datasheet with the detailed commands for control

We have a generic 20x4 datasheet that has dimensions and pin-locations (the exact model may vary but the pinout, size and protocol information is the same). We also have a HD44780 datasheet with the detailed commands for control



Write a review

Please login or register to review

Adafruit 198 Standard LCD 20x4 + extras - white on blue

  • Brand: Adafruit
  • Product Code:Ada-Standard-LCD-20x4
  • Reward Points:20
  • Availability:In Stock
  • रo 2,285.66

  • Ex Tax:रo 1,937.00
  • Price in reward points:2044

  • 50 or more रo 1,993.02
