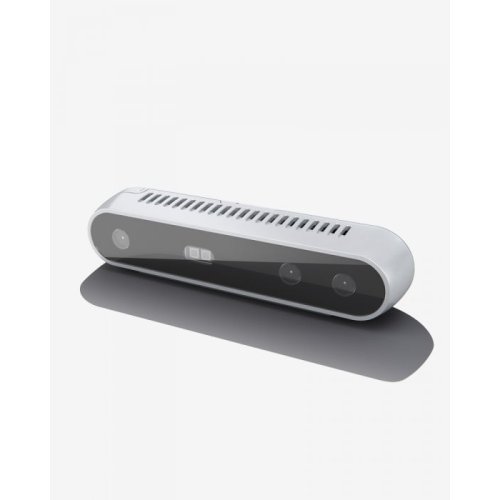

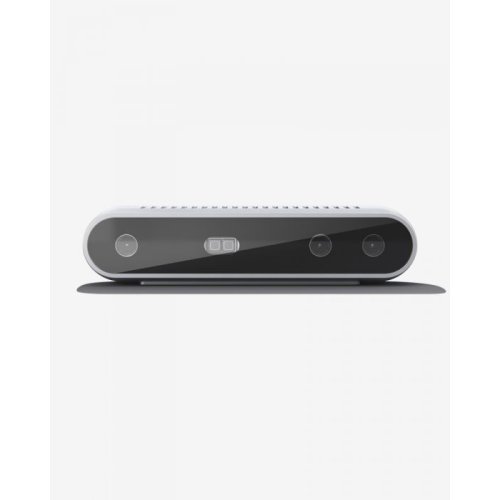

The Intel RealSense Depth Camera D400-Series uses stereo vision to calculate depth. The D415 is a USB-powered depth camera and consists of a pair of depth sensors, RGB sensor, and infrared projector. It is ideal for makers and developers to add depth perception capability to their prototype development.

The depth camera includes:

  • A powerful vision processor that uses 28 nanometer (nm) process technology and supports up to 5 MIPI Camera Serial Interface 2 lanes to compute real-time depth images and accelerate output
  • New and advanced stereo depth algorithm for accurate depth perception and long range
  • A set of image sensors that enable capturing of disparity between images up to 1280 x 720 resolution
  • Support for the new cross-platform and open-source Intel® RealSense™ SDK 2.0
  • Dedicated color image signal processor for image adjustments and scaling color data
  • Active infrared projector to illuminate objects to enhance the depth data

Intel RealSense Depth Camera D415 is designed to best fit your prototype. With the rolling image shutter and narrow field of view, Intel® RealSense™ Depth Camera D415 offers high depth resolution when object size is small and more precise measurements are required.

Use Environment Indoor/Outdoor
Image Sensor Technolog Rolling Shutter
Ideal Range .5 m to 3 m
Depth Technology Stereoscopic
Minimum Depth Distance (Min-Z) at Max Resolution ~45 cm
Depth Accuracy <2% at 2 m
Depth Field of View (FOV) 65° × 40°
Depth Stream Output Resolution Up to 1280 × 720
Depth Stream Output Frame Rate Up to 90 fps
RGB Frame Resolution 1920 × 1080
RGB Frame Rate 30 fps
RGB Sensor Technology Rolling Shutter
RGB Sensor FOV 69° × 42°
RGB Sensor Resolution 2 MP
Camera Module Intel RealSense Module D415
Vision Processor Board Intel RealSense Vision Processor D4
Form factor Camera Peripheral
Camera Dimension 99 mm × 20 mm × 23 mm
(Length × Depth × Height)
Connectors USB-C* 3.1 Gen 1*
Mounting Mechanism – One 1/4‑20 UNC thread mounting point
– Two M3 thread mounting points

Write a review

Please login or register to review

Intel RealSense Depth Camera D415

  • Brand: Intel
  • Product Code:Intel-RealSense-Depth-Cam-D415
  • Reward Points:387
  • Availability:In Stock
  • रo 36,851.00

  • Ex Tax:रo 36,851.00
  • Price in reward points:38709

  • 2 or more रo 36,696.00
  • 4 or more रo 36,541.00
