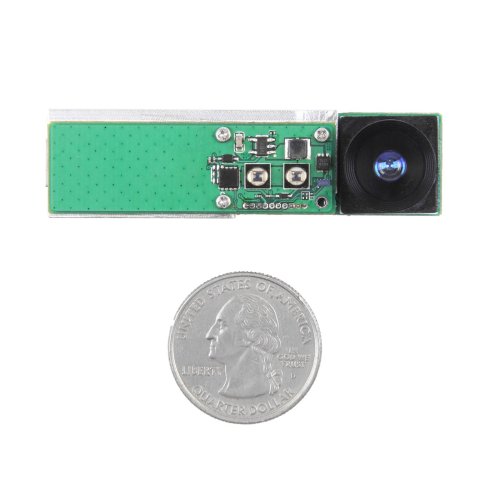

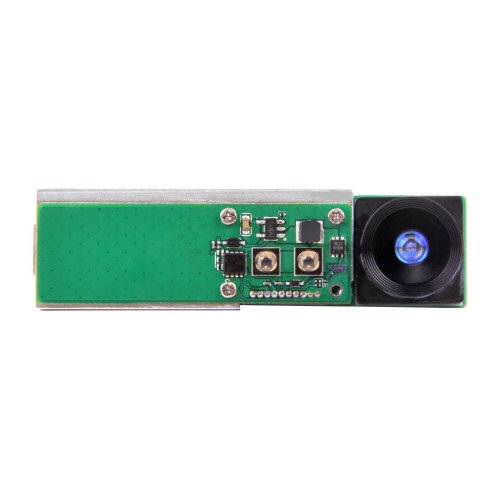

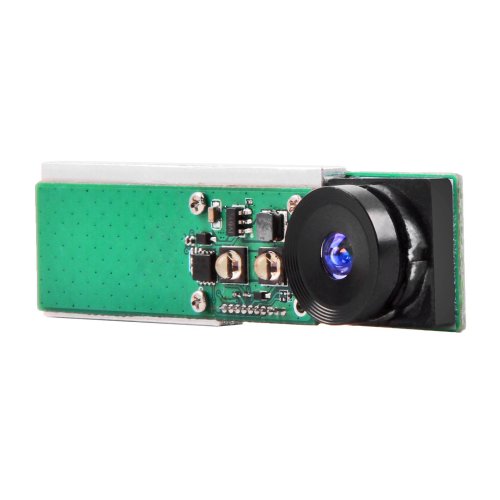

The Depth Eye is the cost-effective TOF base depth camera. It use TI opt8320 sensor and pass all depth data including pointcloud via USB cable.
Feature:
- Amazing tiny size
- USB 2.0 interface
- Provide Pointcloud and RAW depth data
- FOV（D* H*V ） ：90 * 75 * 59
- 2 850nm band infrared LED
- F/NO. is 1.09
- TI OPT8320 sensor
- Resolution is 80*60
Sensor Features:
- Measures Phase with QVGA（80x60）resolution
- 1/6"Optical Format
- Up to 1000fps frame rate
- Global Reset & Shutter
- Programmable Features
- -Frame Size, frame rate
- -Exposure, ROI
- De-aliasing, temp compensation
- IR pass filter (820nm to 865nm)
- 12-bit Phase/Amplitude, 4-bit Ambient
- Parallel Operating Temperature：0°C to + 70°C
Application Scenarios：
- General robot navigation and localization
- Environment scanning and 3D re-modeling
- Service robot or industrial robot working for long hours
- Home service /clean robot navigation and localization
- General simultaneous localization and mapping (SLAM)
- Smart toy's localization and obstacle avoidance
Technical Details
|
Dimensions |
60mm x 17mm x 12mm |
|
Weight |
G.W 20g |
|
Battery |
Exclude |
|
Sensor |
TI OPT8320 |
|
Operating Temperature |
0°C to +70°C |
|
Range |
0.2~2m |
|
Accuracy |
<1.5% of measured distance |
|
FOV（H*V*D) |
75.3°x59.7°x90° |
|
Interface |
USB 2.0 Micro B |
|
OS |
Linux/Android |
Part List
|
DepthEye 3D visual TOF Depth Camera |
1 |
Documents
DepthEye 3D visual TOF Depth Camera
- Product Code:Seeed-DepthEye-3D-Cam
- Reward Points:212
- Availability:In Stock
-
रo 25,011.28
- Ex Tax:रo 21,196.00
- Price in reward points:21196
-
- 65 or more रo 16,249.78
