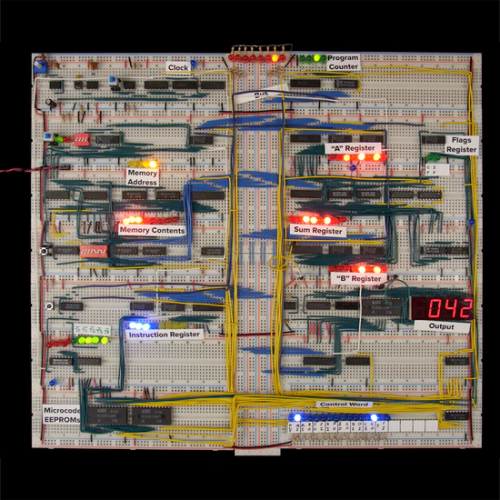

This is the final kit in a set of four kits. In this kit, you'll build the 8-bit computer's output display, control logic, and assemble everything from all four kits into the full programmable computer!

You should have already built the modules from the first three kits before starting this kit. You will continue to use some parts included in the first two kits (power supply and spools of wire).

* The Arduino nano clone included uses the CH340 USB chip. You may need to download the USB serial drivers from Jameco's website. See that link for more details.

Note: Full assembly instructions are provided through the YouTube videos. There is no additional material included with the kit.

Package Includes:

• 6 x Breadboards (High quality BusBoard Prototype Systems BB830)
• 1 x Arduino nano clone* (for building the EEPROM programmer)
• 1 x LM-555 IC timer
• 1 x 74LS00 quad NAND gate
• 1 x 74LS02 quad NOR gate
• 2 x 74LS04 hex inverter
• 2 x 74LS08 quad AND gate
• 1 x 74LS107 dual J-K flip-flop
• 1 x 74LS138 3-to-8 line decoder
• 1 x 74LS139 2-to-4 line decoder
• 1 x 74LS161 4-bit counter
• 1 x 74LS173 4-bit D register
• 1 x 74LS273 8-bit D register
• 2 x 74HC595 8-bit shift register
• 3 x 28C16 EEPROMs
• 1 x Momentary tact pushbutton
• 1 x SPDT slide switch
• 40 x 220Ω resistors
• 5 x 1kΩ resistors
• 10 x 10kΩ resistors
• 5 x 100kΩ resistors
• 20 x Red LEDs
• 10 x Green LEDs
• 20 x Blue LEDs
• 4 x 7-segment LED displays
• 5 x 0.01µF capacitors
• 5 x 0.1µF capacitors
