In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

If you want to grab all the available S-mount lenses for the HQ camera, Arducam has also got a 6-in-1 M12 lens bundle here.

Lens Specifications:

Model No: M25156H18
Optical Format: 1/2.3”
Focal Length: 1.56mm
Aperture: F2
Field of View (FOV): 180° (H) on Raspberry Pi High Quality Camera, 140°(H) on Raspberry Pi V1/V2 Camera
Mount: M12 mount
Back Focal Length: 4.3mm
MOD: 0.2m
Dimension: Φ20×17.3mm
IR Sensitivity: sensitive to visible light, with 650nm IR filter

Other Arducam S-mount lenses with different FoVs

Lenses ender 70 degree: 20° HQ Camera Lens, 50° HQ Camera Lenses, 70° HQ Camera Lens.
Wide Angle and Fisheye Lenses: 90° HQ Camera lens, 130° HQ Camera lens.

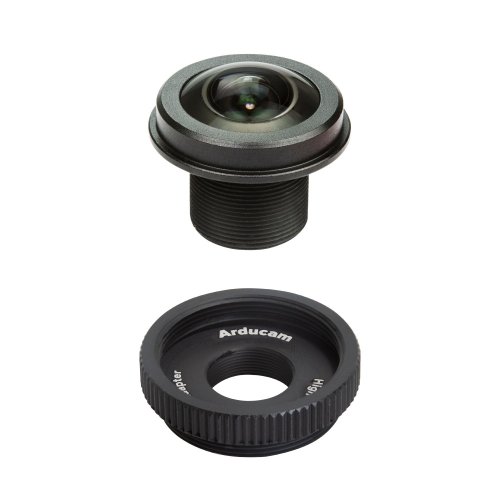

Package Includes:

1 x 1/2.3″ M12 180 degree fisheye camera Lens
1 x M12 lens adapter

Sensor Specifications
Sensor size	1/2.3"
Lens Specifications
Focal Length	Focal Length: 1.56mm Back Focal Length: 4.3mm
Field of View	180° (H)
Lens Mount	M12 mount
Physical Attributes
Dimensions	Φ20×17.3mm
Additional Information
Warranty	90 days
