In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

Specifications:

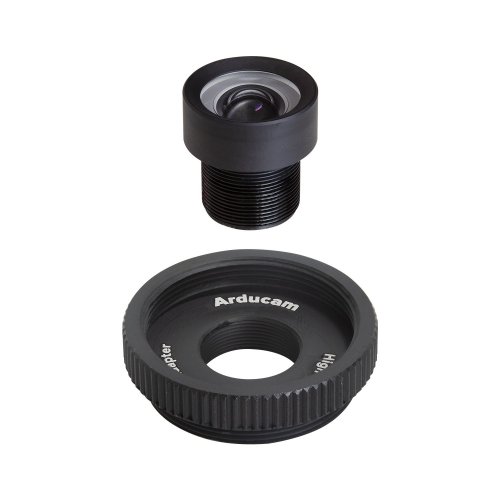

LN024:
- Model No: M2306ZM13
- Optical Format: 1/2.3”
- Focal Length: 6mm
- Aperture: F2
- Field of View (FOV): 50° (H) on Raspberry Pi High Quality Camera, 33°(H) on Raspberry Pi V1/V2 Camera
- Mount: M12 mount
- Back Focal Length: 7.56mm
- MOD: 0.3m
- Distortion: <1%
- Dimension: Φ16×16.41mm
- Weight: 6g
- IR Sensitivity: sensitive to visible light, with 650nm IR filter
LN036:
- Model No: M2025ZM02
- Optical Format: 1/2.3"
- Focal Length: 25mm
- Aperture: F2
- Field of View (FOV): 20° (H) on Raspberry Pi High Quality Camera, 8° (H) on Raspberry Pi V1/V2 Camera
- Mount: M12 mount
- Back Focal Length: 5.2mm
- MOD: 0.2m
- Dimension: Φ17×21mm
- Weight: 8g
- IR Sensitivity: sensitive to IR light, without IR filter

Warranty: 90 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x 1/2.3" M12 50 degree camera Lens / 1/2.3″ M12 20 degree camera Lens
1 x M12 lens adapter

Sensor Specifications
Sensor size	1/2.3"
Lens Specifications
Focal Length	LN024-6mm, LN036-25mm
Field of View	LN024-50° (H), LN036-20° (H)
Lens Mount	M12 mount
Aperture	F2
Physical Attributes
Weight	LN024-6g, LN036-8g
Dimensions	LN024-Φ16×16.41mm , LN036-Φ17×21mm
Additional Information
Warranty	90days
