- Optical Format:1/4”, Effective Focal Length:1.6mm
- 35mm equivalent focal length: 18mm
- FOV on 1/4” sensor(D/H/V): 145°/118°/92°
- HFOV on 1/4” RPi Camera: 118°, F/NO: 2.0
- Mount:M12, Length Holder Height: 7mm
- Size: 14mm x 10mm, Weight: 2g
- IR Sensitivity: sensitive to visible light, with 650nm IR filter
- Lens holder NOT included, you could find holder options following.
- Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.
- M12 Lens Holder Kit (SKU: LHK01)
- Height: 8.5mm; Hole Spacing: 18mm; Plastic (SKU: LH002)
- Height: 7.0mm; Hole Spacing: 20mm; Metal (SKU: U0756)
- Height: 6.0mm; Hole Spacing: 18mm; Plastic (SKU: LH001)
- M12 Lens Kit Datasheet – Arducam M12 Lens Kit
- Arducam Documentation – Arducam M12 Lens Kit
- Video – Arducam M12 Lens Kit
- Blog – Arducam M12 Lens Kit
- 1 x Arducam LN018 1/4 inch M12 Mount 1.6mm Focal Length Lens M40160M12

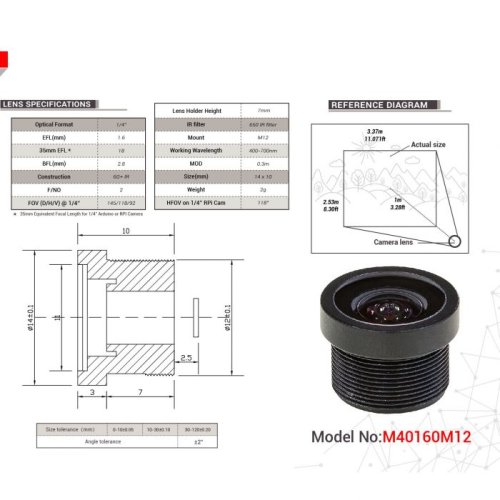

| Lens Specifications | |
| Focal Length | 1/4” |
| Optical Format | 14mm x 10mm, Weight: 2g |
| Field of View | :M12, Length Holder Height: 7mm |
| Lens Mount | 1.6mm |
| Physical Attributes | |
| Dimensions | FOV on 1/4” sensor(D/H/V): 145°/118°/92° HFOV on 1/4” RPi Camera: 118°, F/NO: 2.0 |

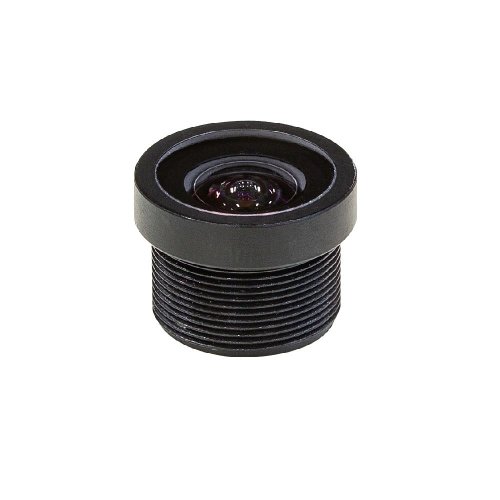

Arducam LN018 1/4 inch M12 Mount 1.6mm Focal Length Lens M40160M12
- Brand: ArduCAM
- Product Code:ArdC-LN018-M40160M12
- Reward Points:8
- Availability:In Stock
- रo 861.40
-
रo 754.02
- Ex Tax:रo 639.00
- Price in reward points:761
-
- 35 or more रo 854.32
- 90 or more रo 857.86
- 180 or more रo 847.24
Available Options
