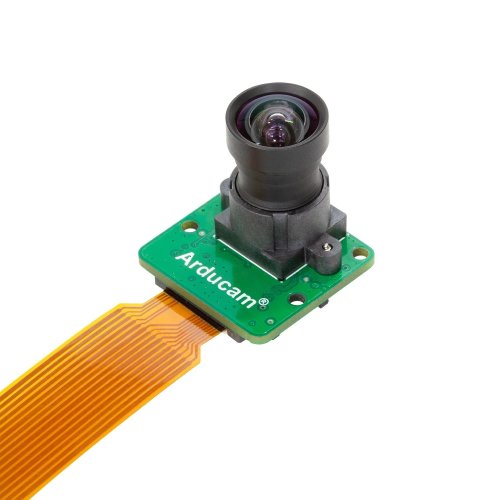

Arducam released this small size camera module for Jetson Nano / Xavier NX. It is fully compatible with Raspberry Pi V2 module size, a 24mm x 25mm IMX477 camera board, a low distortion M12 mount lens. You can use this camera module on Jetson Nano / Xavier NX natively with ISP features, and no need for any driver or hardware update.
-
Camera
- Sensor: IMX477
- Optical Format: 1/2.3″ (diagonal 7.857mm)
- Resolution: 4056(H) x 3040(V) 12.3MP
- Pixel Size: 1.55um x 1.55um
- IR Sensitivity: Visible light
- Interface: 2-lane MIPI CSI-2
- Default Lens Mount: M12 Mount
-
Frame Rate: (depends on the target platform, maximum fps limit might apply)
- 1920×1080 @ 60fps
- 4032×3040 @ 30fps
-
Lens
- Format: 1/2.3 inch
- Focal Length: 3.9mm
- Aperture (F): F2.8
- Field of View (FOV): 80° (H)
- Mount: M12 Mount
- Back Focal Length: 4.49mm
- MOD: 0.1m Dimension: Φ14×18.67mm
- Weight: 5g
-
Camera board
- Board Size: 24mm×25mm
Documents:
- Arducam Documentation - High Quality Camera for Jetson
- 3D Drawing - Mini High Quality Camera for Jetson
- Blog - RPI-CAM-V2 Sized IMX477 Camera Module for Jetson
- 1 x 12.3MP IMX477 color camera module
- 1 x 3.9mm focal length M12 mount camera lens
- 1 x 150mm/12inch 15pin to 22pin camera cable
Arducam B0251 MINI High Quality Camera with M12 mount lens for Jetson Nano and Xavier NX
- Brand: ArduCAM
- Product Code:ArdC-B0251-Camera
- Reward Points:62
- Availability:In Stock
- रo 7,002.12
-
रo 6,126.56
- Ex Tax:रo 5,192.00
- Price in reward points:6181
-
- 5 or more रo 6,943.12
- 10 or more रo 6,972.62
- 20 or more रo 6,885.30
