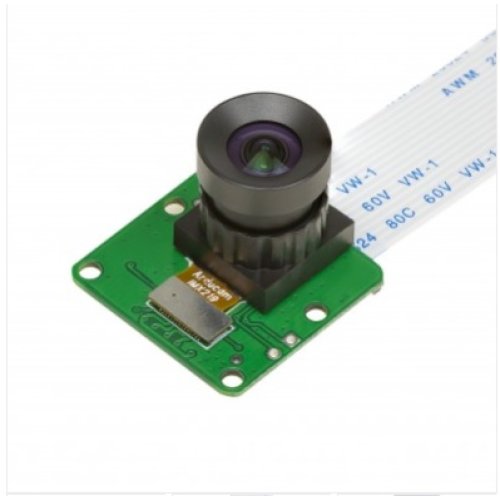

This Arducam IMX219 camera module is mainly designed for NVIDIA® Jetson Nano. The highlight of this camera is its very low distortion (<3%) of the lens.
Features:
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Frame Rate: 21fps@8MP, 60fps@1080p, 180fps@720p
- Data Format: RAW8/RAW10
- EFL: 2.8mm
- F.NO: 2.8
- View Angle: 75 Deg. (Horizontal)
- Interface: MIPI CSI-2 2-lane
- IR Sensitivity: Visible light, Integral IR Filter
Applications:
- Unmanned Aerial Vehicles (UAVs)
- Building Drones
- Autonomous Robotic Systems
- Mobile Medical Imaging
- Intelligent Video Analytics (IVA)
Note:
- The camera can be used on compute module CM3, CM3+, NOT compatible with Raspberry Pi 3B/B+.
Additional Resources:
- Sensor Datasheet – Sony IMX219
- Arducam Documentation – Arducam Cameras for Jetson Nano
- Video – Arducam 8MP IMX219 Low Distortion NVIDIA Camera
- Blog – Arducam 8MP IMX219 Low Distortion NVIDIA Camera
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
Package Includes:
- 1 x Arducam IMX219 Low Distortion Camera Module for NVIDIA Jetson Nano
- 1 x 1.0mm pitch 15cm 15pin FPC cable
| Sensor Specifications | |
| Sensor type | Sony IMX219 Sensor |
| Sensor size | 1/4 inch |
| Data Format | RAW8/RAW10 |
| Frames per Second | 21fps@8MP, 60fps@1080p, 180fps@720p |
| Resolution | 8MP |
| Lens Specifications | |
| Field of View | 75 Deg. (Horizontal) |
Arducam B0183 IMX219 Low Distortion M12 Mount Camera Module for NVIDIA Jetson Nano
- Brand: ArduCAM
- Product Code:ArdC-B0183-Camera
- Reward Points:29
- Availability:In Stock
- रo 2,324.60
-
रo 2,020.16
- Ex Tax:रo 1,712.00
- Price in reward points:2890
-
- 7 or more रo 2,301.00
- 13 or more रo 2,289.20
- 33 or more रo 2,277.40
- 65 or more रo 2,271.50
